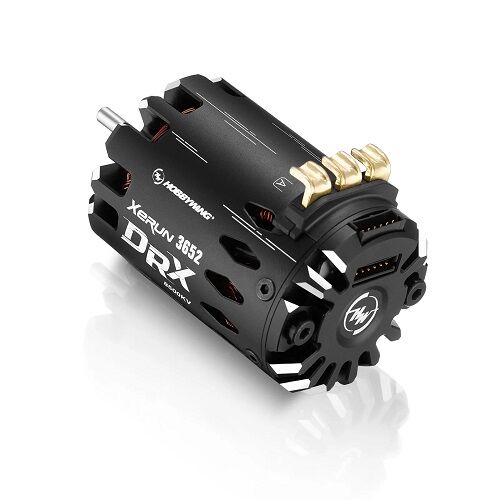

XERUN DRX 3652SD 8500KV Drag Racing Brushless Motor
Pair This XERUN Motor With Your ESC
SKU: TM0028
XERUN DRX 3652SD 8500KV Drag Racing Brushless Motor
Unleash Extreme Speed & Control — Built for RC Drag Racing
Push your RC dragster to the limit with the XeRun DRX 3660, a high-performance sensored brushless motor engineered specifically for the intense demands of RC drag racing. Whether you're chasing records or leaving your competition in the dust, the DRX 3660 delivers ultra-high RPM, explosive torque, and exceptional reliability under extreme conditions.
Key Features:
Extreme RPM & Raw Power
Purpose-built for drag racing, this motor delivers blistering acceleration and consistent top-end performance.
Advanced Heat Dissipation
The open-structure motor can and end cap design maximizes airflow, keeping temps down even under full-throttle launches.
Dual Sensor Ports
Flexible wiring options let you customize your setup for optimal layout and cable management.
High-Current Handling
Upgraded widened & thickened copper bars ensure efficient current flow—built to handle serious amps with zero compromise.
Explosion-Proof Rotor Sleeve
Steel-sleeved rotor offers reinforced structural integrity for ultra-high RPM safety and stability—run harder with peace of mind.
Why Choose the DRX 3660?
This isn't just another motor—it’s a weapon for the strip. The XeRun DRX 3660 gives you the precision, durability, and thermal control that serious racers demand. Pair it with a high-quality ESC, gear it right, and dominate your next race with confidence.
IMPORTANT USAGE & SAFETY NOTES:
Power Responsibly
-
Always monitor the motor during use—never leave it powered on unattended.
-
Insulate all wires and connections carefully to avoid short circuits.
-
Ensure motor-ESC wiring follows correct phase order: A-A, B-B, C-C.
-
Do not expose the motor to water, oil, fuel, or conductive liquids.
Installation & Operation
-
Avoid full throttle operation without the pinion installed—high RPM with no load can damage the motor.
-
Stop use if the motor case exceeds 100°C (212°F) to avoid rotor demagnetization.
-
Double-check all connections to prevent control loss or unexpected behavior.
-
Review all power system components to ensure compatibility before installation.
Take Control. Leave the Rest Behind.
Upgrade your drag setup with the XeRun DRX 3660—because when the light goes green, there’s no time for second place.
Specifications
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 4
Relevant Parameters
KV Rating: 8500KV
LiPo Cells: 2S LIPO
No-load Current(A): 8.2A
Size & Weight
O.D.(mm): 36
Length (mm): 53
Shaft Diameter (mm): 31.75
Weight (g): 177g
Front Bearing: D9*D4*T4
Rear Bearing: D8*D3*T4
Other Parameters
Vehicles: 1/10th Drag Racing
3 Month Warranty
Type
-
- Brushed/Brushless
- Sensored/Sensorless
- Waterproof
-
- BL
- SL
- Waterproof (IP55)
Specifications
-
- Cont./Peak Current
- Input Voltage
- BEC Output
-
- 70A/200A
- 2-4S Lipo
- Switch mode 6V/7.4V/8.4V @5A
Wires & Connectors
-
- Input Wires
- Output Wires
- Input Connectors
- Output Connectors
-
- Red-14AWG-100mmx1,Black-14AWG-100mmx1
- Black-16AWG-80mmx3
- No
- 4.0mm Female plug
ESC Programing via
-
- LED Program Box
- LCD G2 Program Box
- LCD PRO
- OTA Programmer
- Program Port
-
- Supported
- Supported
- Supported
- Supported
- Throttle wires & yellow wire
Data Recording
-
- Extreme value
- Real-time Data
- Historical data (Graph)
-
- Supported
- Supported
- Supported
Firmware
-
- Firmware Upgrade
-
- Supported
Size & Weight
-
- Size
- Weight
-
- 38.5x30x8.4mm
- 35g(Without water cooling pipe )
Applications
-
- Applicable Boat
-
- Mini Mono,Mini ECO, Mini Hydro competition
SKU | TM0028 |
Barcode # | 9351634089123 |
Brand | Hobbywing |
Shipping Weight | 0.0177kg |
Shipping Width | 0.053m |
Shipping Height | 0.084m |
Shipping Length | 0.030m |
Shipping Cubic | 0.000132300m3 |
Unit Of Measure | ea |
