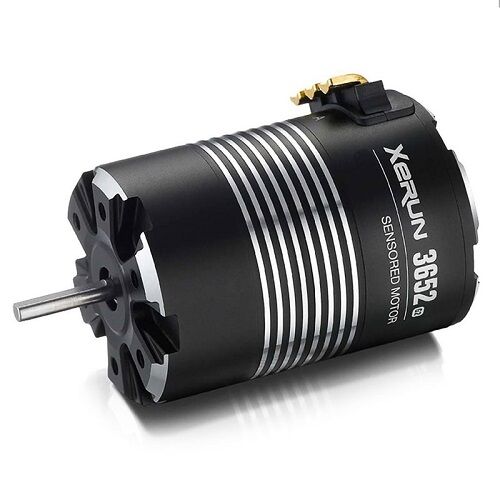

Xerun 3652SD Sensored G2 Motor 6100KV

Pair This XERUN Motor With Your ESC

SKU: TM0018


$144.95
RRP $289.90
In Stock




Calculate Shipping

Xerun 3652SD Sensored G2 Motor 6100KV

High-RPM 4-Pole Power for 1/10 Scale RC | Turbo Timing + Full-Time Sensored Mode


Precision Engineered for Performance

The XeRun 3652 SD G2 is Hobbywing's next-generation 4-pole sensored brushless motor, built for 1/10 scale high-performance racing. It’s the first 4-pole motor with an integrated smart chip, allowing seamless communication with Hobbywing XR8 ESCs to enable true full-time sensored operation. The result: unmatched throttle smoothness, acceleration, and precision control on any surface.


Key Features

Smart Chip for XR8 ESC Pairing

  • Auto-detection by Hobbywing XR8 Series ESCs

  • Enables constant sensored mode for ultra-smooth throttle and no transition lag

  • Compatible with other ESCs (limited to hybrid mode if not XR8)

Turbo Timing Functionality

  • Unlocks explosive acceleration and top-end speed

  • Fully adjustable via XR8 ESC settings

  • Perfect for on-road racing, short course, and high-speed off-road setups

Advanced Hall Sensing System

  • Hobbywing’s patented error-free encoder outputs ultra-precise rotor position

  • Immune to signal interference — ideal for competitive racing environments

  • Provides rock-solid sensored control at any speed

Staggered Pole Rotor Design

  • 4-pole / 8-magnet rotor with staggered pole configuration

  • Significantly reduces cogging and torque ripple

  • Enhances cornering feel and mid-throttle smoothness

High-Quality Construction

  • Double-insulated windings (rated to 200°C)

  • Japanese NMB bearings for smooth, durable rotation

  • Ultra-thin silicon steel laminations reduce heat and power loss

  • Lightweight hub-style end bells help keep weight low


Specifications

Specification Value
Scale 1/10
Motor Type Brushless (Sensored)
Pole Count 4
KV Rating 6100KV
Input Voltage 2S LiPo
No-load Current 5.9A
Resistance 2.9 mΩ
Motor Diameter 36mm (1.417 in)
Motor Length 52.5mm (2.067 in)
Shaft Diameter 5mm (0.197 in)
Shaft Length 15mm (0.591 in)
Adjustable Timing 20°–40°
Weight 186g

Ideal For:

  • 1/10 Scale Short Course Trucks, Stadium Trucks, Touring Cars, and 4WD Buggies

  • Drivers seeking higher RPM, lightweight builds, and sensor precision

  • Hobbyists looking for turbo-enhanced performance


What's Included:

  • XeRun 3652 SD G2 6100KV Motor

  • Sensor Cable

  • User Manual


Recommended Pairing:

  • Hobbywing XeRun XR8 SCT or XR8 Pro ESC
    (For full sensor compatibility and turbo control)


Why Choose This Motor?

With a balance of brutal speed, smart sensor precision, and track-tested durability, the XeRun 3652 SD G2 6100KV is made for serious racers and skilled hobbyists who demand top-tier brushless motor performance in their 1/10 scale setups.

3 Month Warranty

Type

  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • BL
  • SL
  • Waterproof (IP55)

Specifications

  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 70A/200A
  • 2-4S Lipo
  • Switch mode 6V/7.4V/8.4V @5A

Wires & Connectors

  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Red-14AWG-100mmx1,Black-14AWG-100mmx1
  • Black-16AWG-80mmx3
  • No
  • 4.0mm Female plug

ESC Programing via

  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO
  • OTA Programmer
  • Program Port
  • Supported
  • Supported
  • Supported
  • Supported
  • Throttle wires & yellow wire

Data Recording

  • Extreme value
  • Real-time Data
  • Historical data (Graph)
  • Supported
  • Supported
  • Supported

Firmware

  • Firmware Upgrade
  • Supported

Size & Weight

  • Size
  • Weight
  • 38.5x30x8.4mm
  • 35g(Without water cooling pipe )

Applications

  • Applicable Boat
  • Mini Mono,Mini ECO, Mini Hydro competition
SKU TM0018
Barcode # 9351634089031
Brand Hobbywing
Shipping Weight 0.0186kg
Shipping Width 0.053m
Shipping Height 0.084m
Shipping Length 0.030m
Shipping Cubic 0.000132300m3
Unit Of Measure ea
