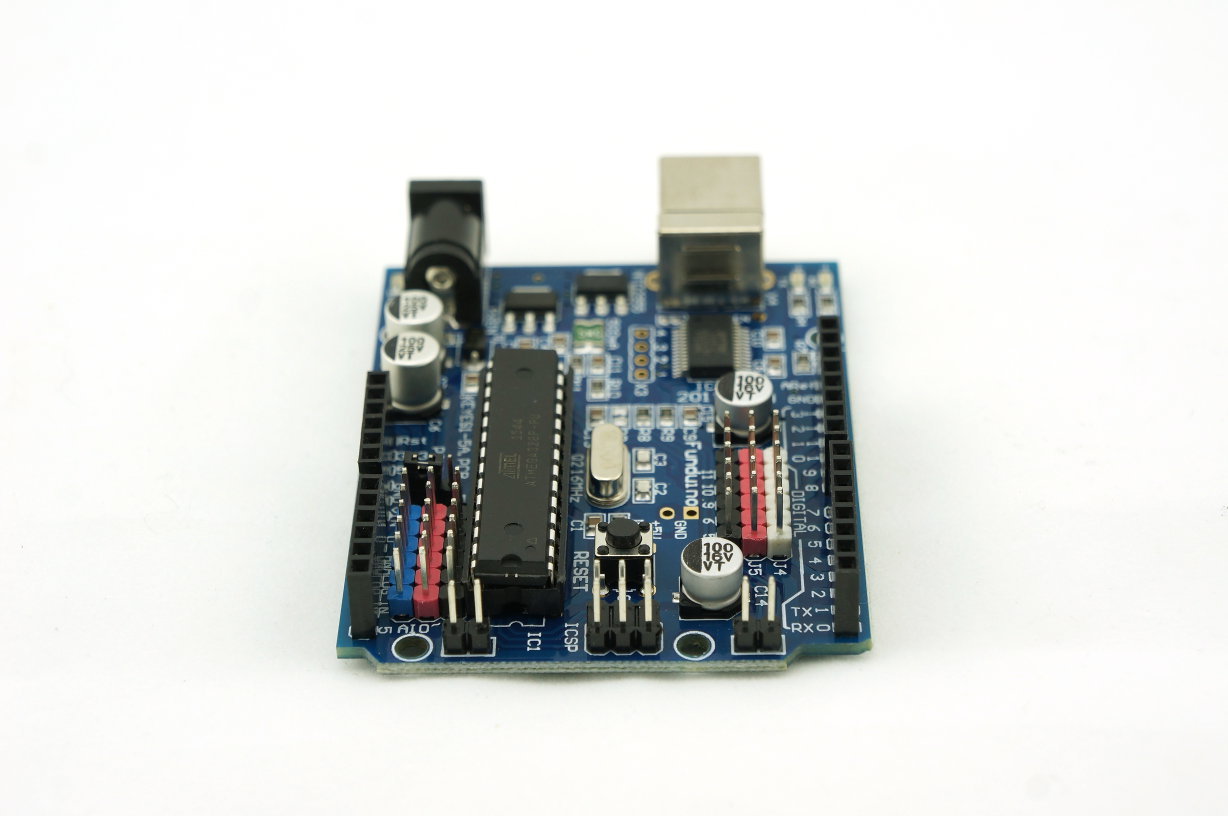

Uno Super 328p Development Board for Arduino Projects

New and improved. Using the new Atmega328P IC

SKU: TA0008


$24.95
RRP $49.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $23.65 ea
Buy 11 to 20: Pay $22.47 ea
Buy 21 to 100: Pay $21.34 ea




Calculate Shipping

Uno Super 328p Development Board for Arduino Projects - New and improved. Using the new Atmega328P IC



This board is based on the Atmega328. It has 14 digital input and output pins, 6 analog inputs, 16Mhz crystal oscillator, USB link, power supply socket and ICSP connector. It contains all the components required for the microprocessor, and only need to be connected with the computer to get started with USB cable.



Specifications of Arduino super development board:



1. Microcontroller Core: AVRmega328P-PU (processing speed up to 20MIPS)

2. Working voltage: +5V

3. External input voltage: 7V ~ 12V (recommended)

4. External input voltage (maximum): +6V≤ Vin≤ +20V

5. I/O digital signal interface: 14 (6 PWM output)

6. Analog signal input interface: 6

7. DC I/O interface current: 40 mA

7. Flash capacity: 16 KB (other 2K for bootloader)

8. SRAM static storage capacity: 1KB

9. EEPROM storage capacity: 512 bytes

10. Clock frequency: 16MHz



Note: The Super 328p uses USB to upload scripts, tthe setting should be below:

Board= Arduino Duemilanove or Diecimila
Port= COMx, "x" means number 0~255.



Brand: iDuino

3 Month Warranty

This Development boards USB chip is FT232, so it needs FT232 driver, not 16U2 for normal Arduino UNO development board

You may download the FT232 driver from the below
http://www.ftdichip.com/Drivers/VCP.htm

Settings should also be:


Board= Arduino Duemilanove or Diecimila
Port= COMx, "x" means number 0~255.
SKU TA0008
Barcode # 9351634002542
Brand iDuino
Shipping Weight 0.0700kg
Shipping Width 0.130m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000520m3
Unit Of Measure ea

A Great Development Board for Arduino

By: on 13 June 2018
Another board in the great Arduino tradition. I haven't checked the documentation yet, as I wanted to use it as a stock-standard Arduino Uno. I can see though through extra male jumpers on the board, you could access multiple GND, VCC and PWM connectors. It would be nice to get a single sheet summary of the extra goodies on the board. I suppose that they are stuck with a basic UNO form factor, but it would be nice if they moved like Freetronics to a smaller USB terminator, rather than the bulky printer-style one. Most developers would probably agree with me.
(4)

Great product and support

By: on 5 March 2018
A great little board, excellent value for money. Needed a bit of help setting it up, very impressed with the immediate response and quality support I received.
(5)

Good uno board

By: on 21 February 2018
great board worked as expected to program attiny84
(5)
