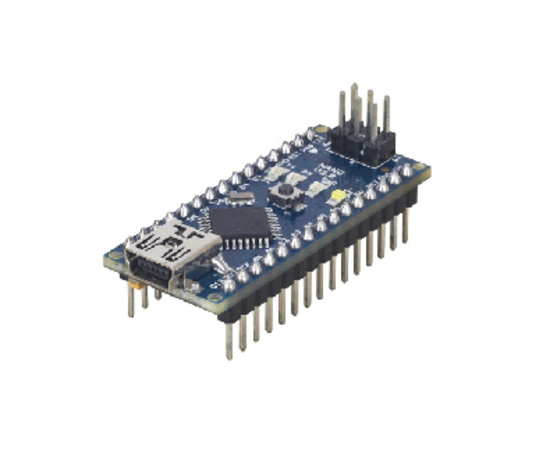

Nano Development Board for Arduino Projects

Small and Compact but powerful micro-controller

SKU: TA0006


$26.95
RRP $59.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $25.60 ea
Buy 11 to 20: Pay $24.32 ea
Buy 21 to 100: Pay $21.89 ea
Buy 101 to 500: Pay $19.70 ea
Buy 501 to 2,000: Pay $17.73 ea




Calculate Shipping

Nano Development Board for Arduino Projects



Small and Compact but powerful micro-controller



The Nano development board for Arduino project is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x)



It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.



Specifications:



Microcontroller: Atmel  ATmega328

Operating Voltage (logic level): 5 V

Input Voltage (recommended): 7-12 V

Input Voltage (limits): 6-20 V

Digital I/O Pins: 14 (of which 6 provide PWM output)

Analog Input Pins: 8

DC Current per I/O Pin: 40 mA

Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328)

SRAM: 1 KB (ATmega168) or 2 KB (ATmega328)

EEPROM: 512 bytes (ATmega168) or 1 KB (ATmega328)

Clock Speed: 16 MHz

Dimensions: 0.73" x 1.70"

Length: 45 mm

Width: 18 mm

Weigth: 5 g

Brand: iDuino



Please downloand the appropriate drivers for your operating software.

Windows OS

MAC OS



Installation:
Unplug the Nano Development board
Unload the old drivers if running:
- sudo kextunload /Library/Extensions/usbserial.kext
- sudo kextunload /System/Library/Extensions/usb.kext
Remove the old driver by issuing one of the following commands (depending on your installation):
- sudo rm -rf /System/Library/Extensions/usb.kext
- sudo rm -rf /Library/Extensions/usbserial.kext
Double-click on the CH34x_Install_V1.5.pkg file and install (no need to reboot)
Instead of rebooting, you can force quit Installer after it completes.
Load the new driver:
- sudo kextload /Library/Extensions/usbserial.kext
Plug in your device. It should now be listed under the /dev directory. Examples:
- /dev/cu.wchusbserial1410
- /dev/tty.wchusbserial14210 (driver version 1.5)





CLICK HERE TO SEE OTHER DEVELOPMENT BOARDS

CLICK HERE TO SEE OTHER PRODUCTS FOR ARDUINO PROJECTS





3 Month Warranty

SKU TA0006
Barcode # 9351634002528
Brand iduino
Shipping Weight 0.0700kg
Shipping Width 0.130m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000520000m3
Unit Of Measure ea
Assembled Length 0.053m
Assembled Height 0.050m
Assembled Width 0.075m

quick delivery

By: on 9 July 2020
works perfectly
(5)

Nano Development Board for Arduino Projects

By: on 30 August 2018
Very pleased with the service from AusElectronicsDirect, price was very competitive, component arrived very quickly, and is operating as expected.
(5)

Arduino Nano

By: on 10 July 2018
We had prototyped some solutions on the larger Arduno DUO boards, and then discovered the smaller Nano board. With similar specs in terms of processor, memory etc. These new boards worked perfectly fine with our code and enabled our solution to be housed in a much smaller case. This resulted in a lower priced solution being delivered for our customers.
(5)

Looking forward to using my nano

By: on 17 March 2018
I am looking forward to using this tiny board in an interesting way. Although mini USB is an interesting choice on a modern board, it doesn't affect the use of the nano in a negative way.
(4)

Great little board

By: on 3 January 2017
Started project with this board. Very easy to setup and use, extremely flexible. Only issue so far is getting the watchdog to work, still to resolve as it keeps the rst held high even if set to 8secs to allow for bootloader.
(4)
