HDMI Audio Splitter/Extractor with ARC

HDMI Audio Splitter Extractor

SKU: AA6084

RRP $99.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $47.45 ea
Buy 11 to 20: Pay $45.08 ea
Buy 21 to 100: Pay $42.82 ea

Calculate Shipping

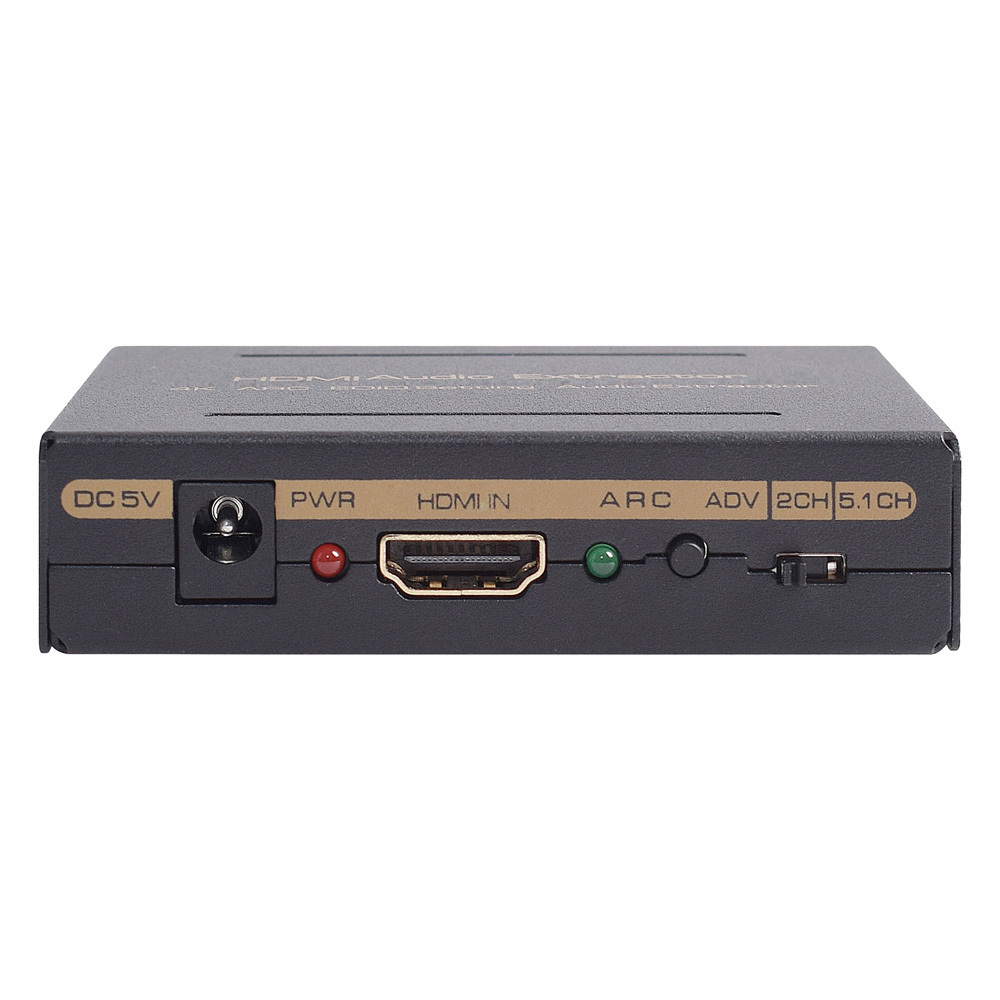

HDMI Audio Splitter Extractor


Allows connection of your HDMI device to your Home Theatre

This HDMI Audio Splitter/Extractor allows you to extract the digital audio putput and connect your HDMI Devices (PS4, XBOX, Set Top Box, Blu-ray) to older hi-fi receivers, amplifiers and even headphones. Audio outputs are digital toslink (Fibre Optic) or analogue stereo RCA outputs.


  • One HDMI input converter to one HDMI+ One SPDF+ One LR Audio Out

  • Output audio support: SPDIF+R/L analog Audio Output

  • Support  Full HD 1080P, Full 3D,4K*2K resolution

  • Support ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receive the audio and video content.

  • HDMI 1.4V

  • HDMI to achieve the synchronization of audio signal separation. There are ADV /2.0CH / 5.1CH three kinds of audio mode options

  • LED indication: when source or sink is working, LED relative to is light.

  • No loss of quality

  • Installs in minutes



HDMI resolution : 24/50/60fs @ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i

Support video color format : 24bit/deep color 30bit,36bit

Audio output : Line Lever RCA L & R + Digital SPDIF

Max bandwidth : 300MHz

Max baud rate : 9.0Gbps

Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal : 5Volts p-p (TTL)

Input cable distance : ≤15m AWG26 HDMI standard cable

Output cable distance : ≤20m AWG26 HDMI standard cable

Max working current : 500mA

Power adapter : DC5V/1A

Operating Temperature range : (-10 to +55℃)

Storage Temperature range : -20 to +60℃

Operating Humidity range : 10 to 90%RH (No Condensation)

Storage Humidity range : 5 to 95%RH (No Condensation)

Dimension (L x W x H) : 84.5X61.8X21 (mm)

Weight : 135g


12 Month Warranty

SKU AA6084
Barcode # 9351634006038
Brand Aus Electronics Direct
Shipping Weight 0.3200kg
Shipping Width 0.150m
Shipping Height 0.060m
Shipping Length 0.160m
Shipping Cubic 0.001440000m3
Unit Of Measure ea

Does the job, great.

By: on 25 August 2021
Bought for my sons steelseries headphones, and does exactly what we needed. (PS5).

it looks good

By: on 13 February 2019
I tried it and it works fine. Get a bit of a "clicking sound" when switiching on, but that probably does not matter.

HDMI Audio Splitter/ Extractor with ARC

By: on 5 January 2019
The device performs as expected. I had some trouble getting the HDMI to work but then realised that the "IN" and "Out" are reversed. Once switched around all is good!

Hdmi Audio splitter/ Extraxtor and ARC

By: on 19 December 2018
Great little box to connect to our projector for our Google chrome cast as we could not get volume with chrome cast in the projector bought this and now we have volume thanks heaps

Good product. Good service.

By: on 4 November 2018
I purchased this HDMI audio splitter for when I have Fox connected to my spare monitor in the study. It allows me to run the sound to my desktop speakers when I am working on my computer. The product works perfectly and is everything that was described on line. Great service from Aus Electronics Direct at a fair price.
