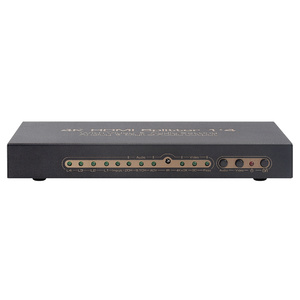

4 Way HDMI AV Splitter with Audio Splitter / Extractor

Splits HDMI Signal and allows connections to a Receiver

SKU: AA6130


$99.95
RRP $169.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $94.95 ea
Buy 11 to 20: Pay $90.20 ea
Buy 21 to 100: Pay $85.69 ea




Calculate Shipping

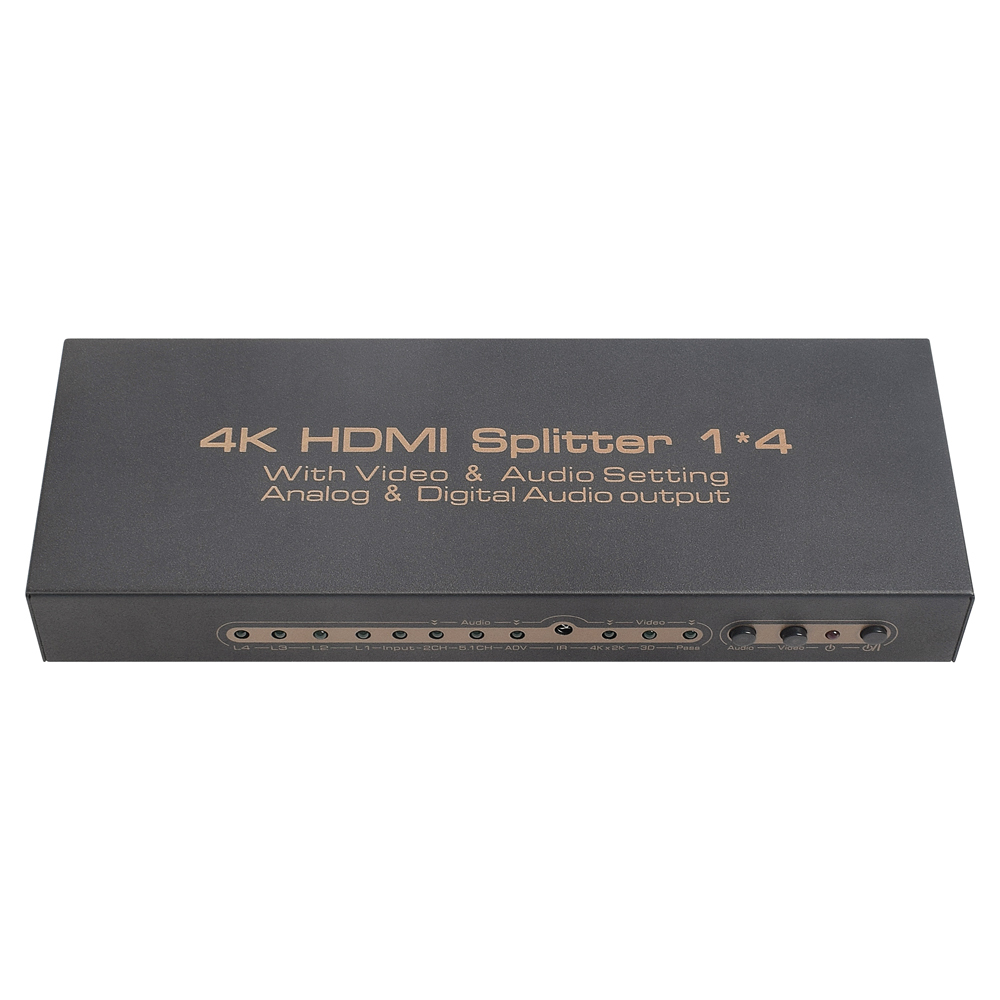

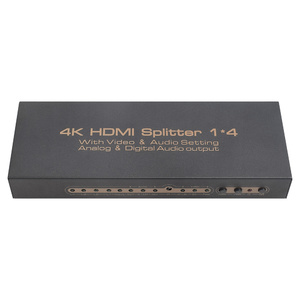

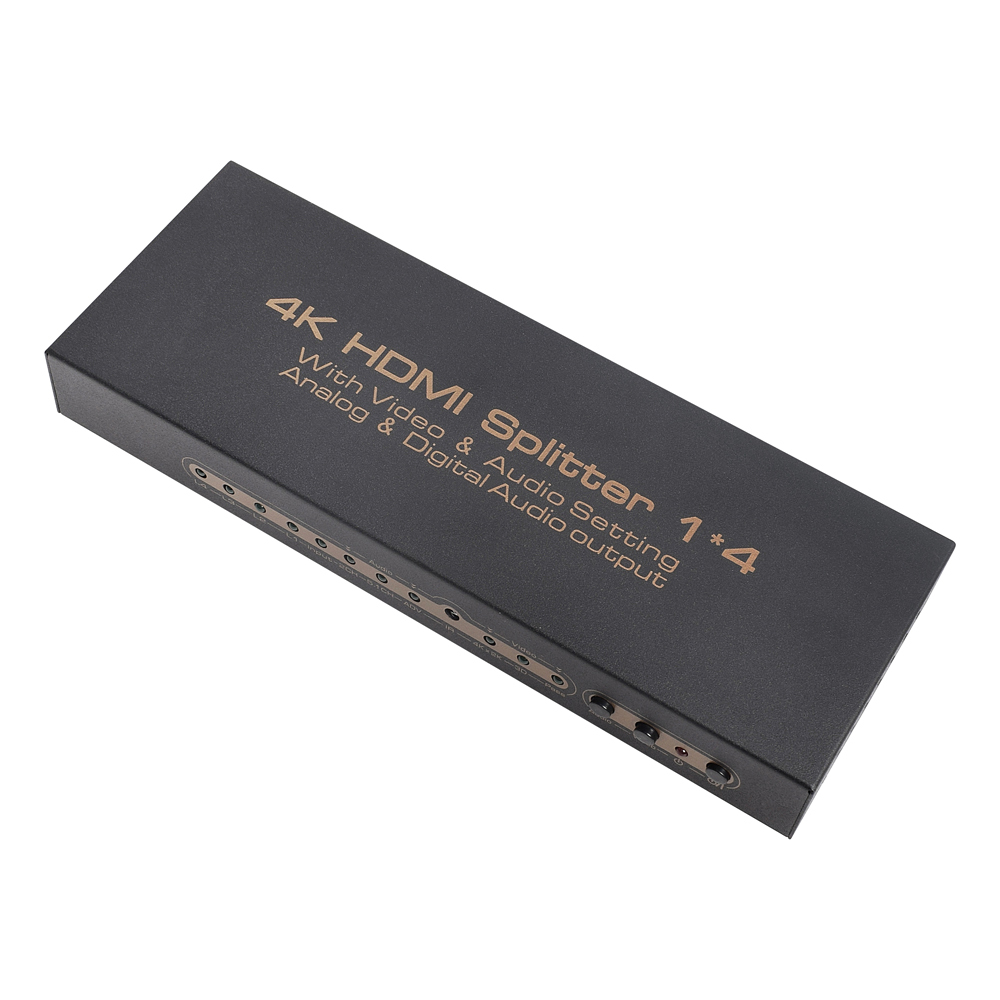

4 Way HDMI AV Splitter

Distribute a HDMI Source to 4 Displays Simultaenously and connects to a Receiver

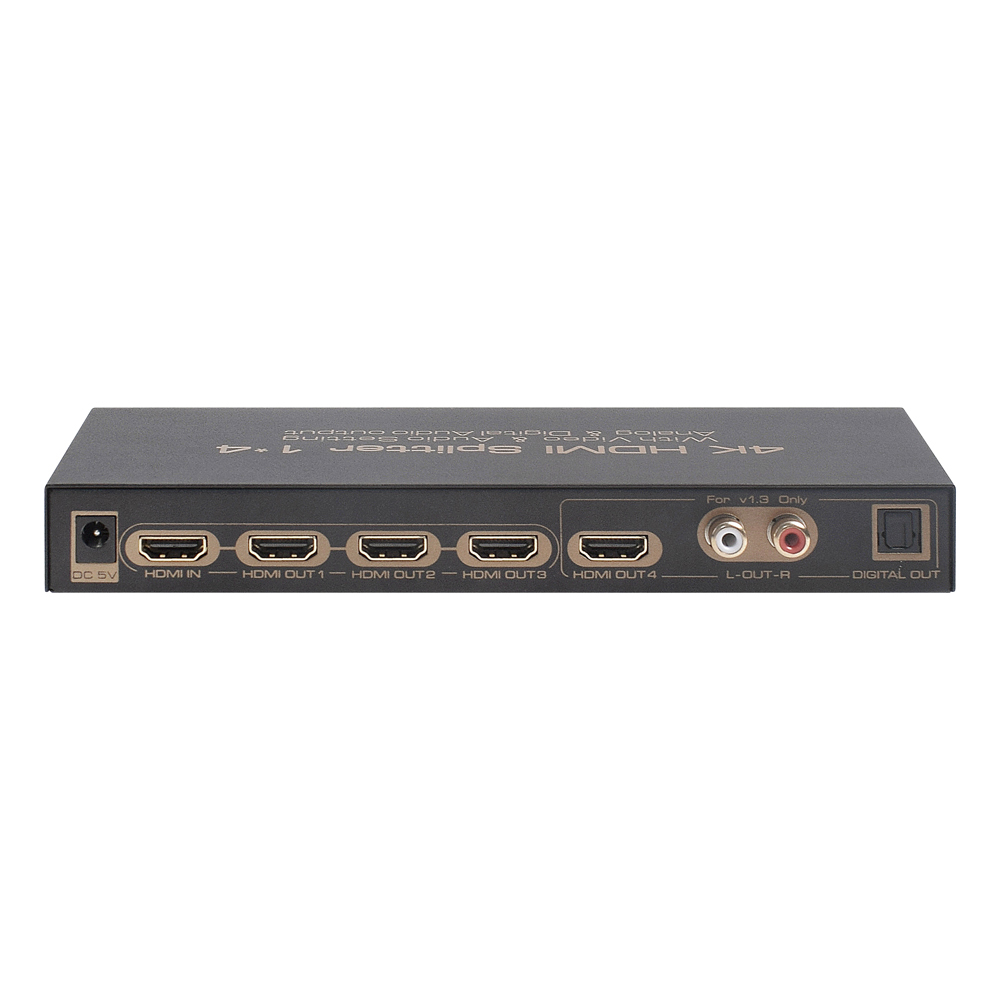

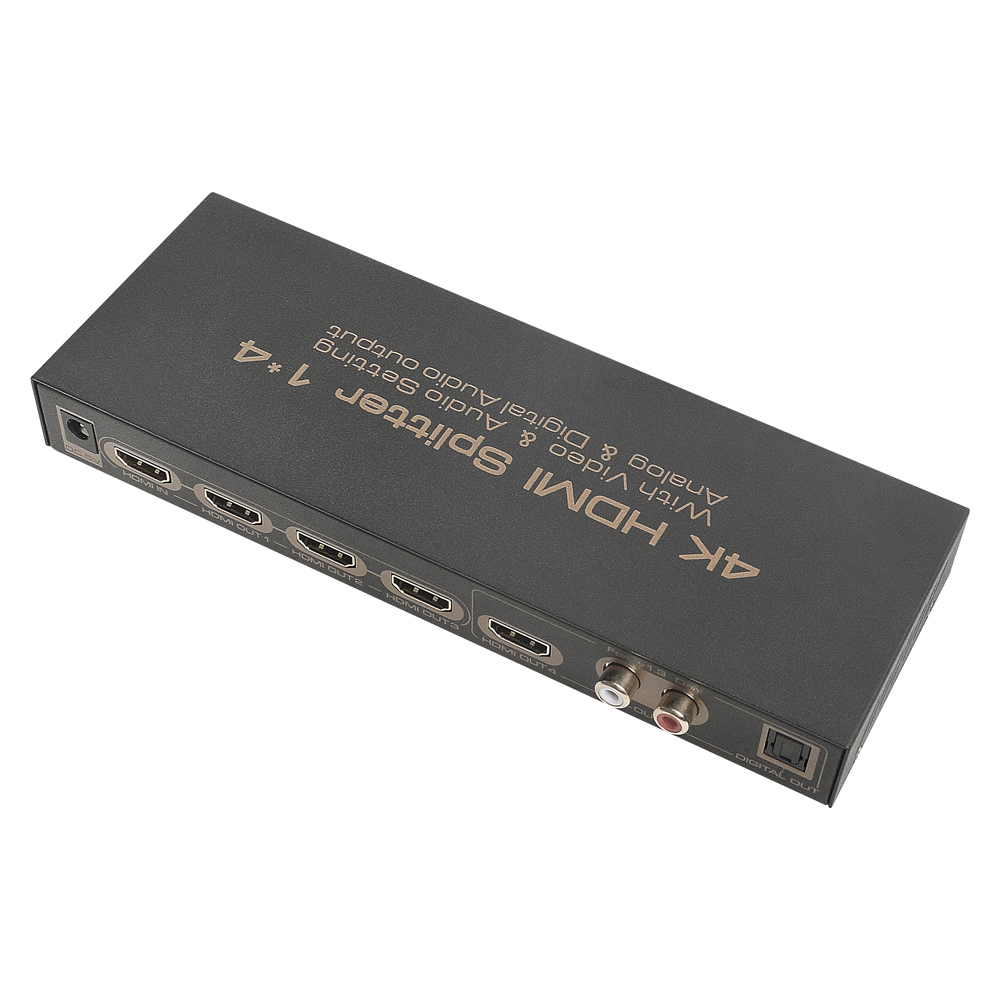

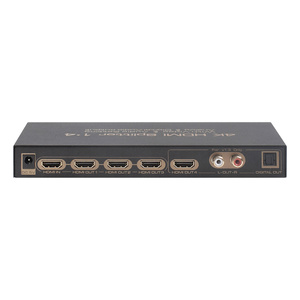

This 4 Way HDMI AV splitter distributes 1 HDMI source to 4 HDMI output / displays simultaneously and connects the audio to an external amplifier or receiver. The Splitter allows one HD source to be split easily to four HDMI compatible monitors or projectors. It also supports extra analog stereo audio output and digital SPDIF audio output. The video mode output is selectable to three video mode:3D mode, 4K x 2K mode and Pass mode, as well as the audio output mode : 5.1CH mode, 2.0CH Mode and Pass mode.



Features:

  • One HDMI input signal split to four HDMI sink devices
  • Support 4K full HD signal input and output (The output port 4 only can support the 3D signal output)
  • Support analog stereo audio and digital audio(SPDIF/Toslink) output (the function can not work when the video output is 4KX2K Mode)
  • Support deep color 24bit,30bit, 36bit
  • Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
  • HDMI 1.4V
  • HDMI audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Support LPCM2.0/DTS/Dolby-AC3 digital audio(SPDIF/Toslink) output
  • The video and audio output mode can be controlled by the remote or R/M or by pressing s the switch button.
  • Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine

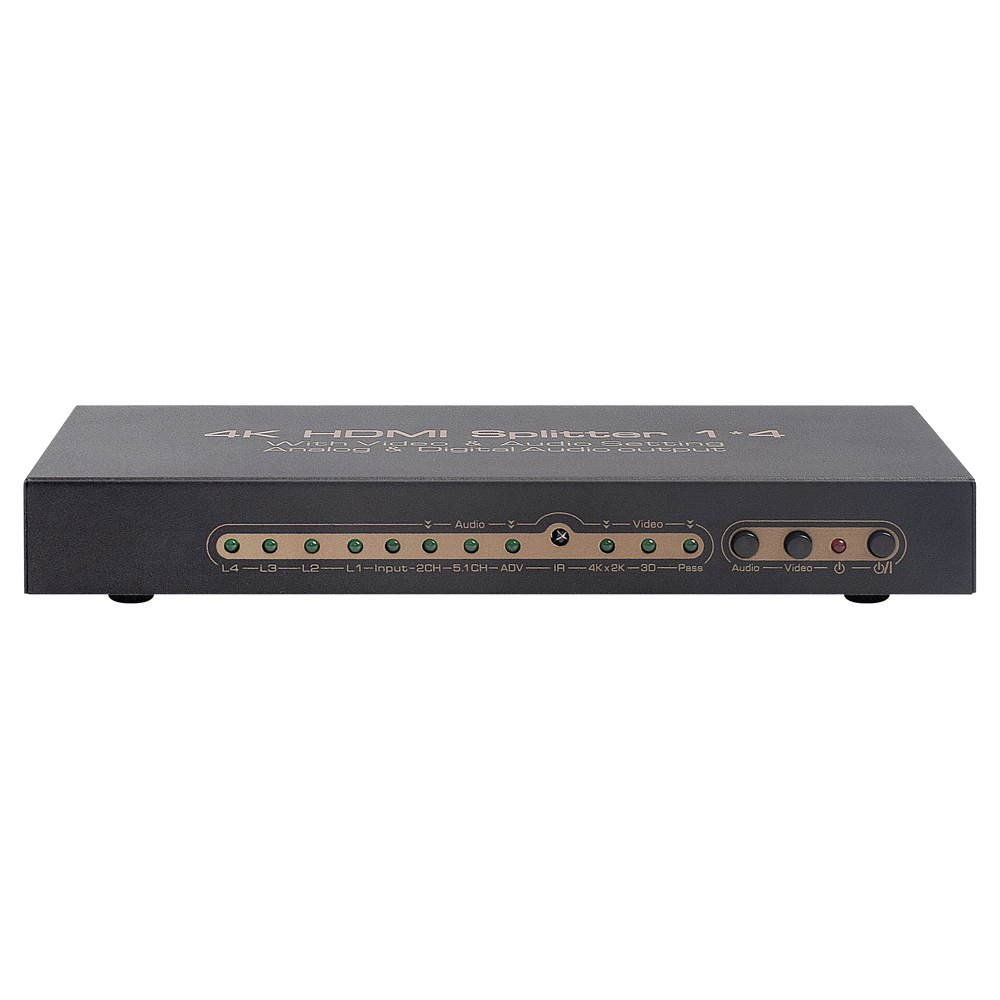

  • LED status indication, it can tell us the working state of the device very easily.
  • Support signal retiming
  • Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
  • No loss of quality
  • Installs in minutes

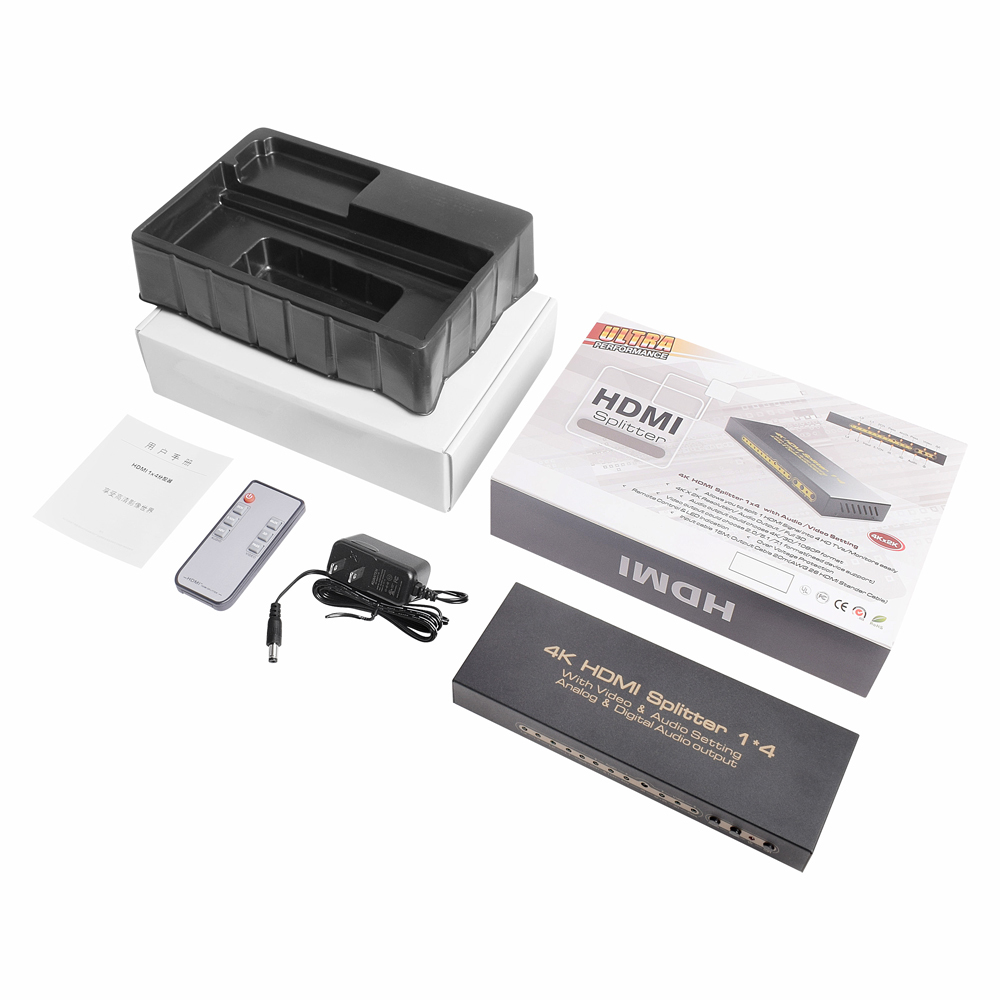

Package:

  • HDMI Splitter (1PCS)
  • 5V1A DC Power Supply adapter (1PCS)
  • Operation Manual (1PCS)

Specifications:

HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit,30bit,36bit deep color

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Digital audio output format…………………………………………...LPCM2.0/DTS/Dolby-AC3

Max bandwidth……………………………………………………………………………..340MHz

Max baud rate……………….…….………………….…………………………………..10.2Gbps

Input/Output TMDS signal ………….…………………………..……. 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... ……………………….…….….≤15m AWG26 HDMI standard cable

Output cable distance…………………………..…….…...≤20m AWG26 HDMI standard cable

Max working current……………………………………………………………….………..700mA

Power adapter format..Input: …….............AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-0 to +40℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….………………………205x74x226 (mm)

Weight…..………………………………………………………..…….………………………360g



3 Month Warranty

SKU AA6130
Barcode # 9351634010387
Brand Playvision
Shipping Weight 0.6600kg
Shipping Width 0.180m
Shipping Height 0.070m
Shipping Length 0.250m
Shipping Cubic 0.003150000m3
Unit Of Measure ea
Assembled Length 0.120m
Assembled Height 0.010m
Assembled Width 0.100m

Does what it should

By: on 2 December 2018
I brought this to split audio onto a optical fibre Cable into an older Sony receiver. I plug chromecast into it, the signal to a monitor and the amp are perfect. I had a cheaper splitter that didn’t work with video, and chromecast kept dropping out. This unit fixed that issue as well. Glad I brought it.
