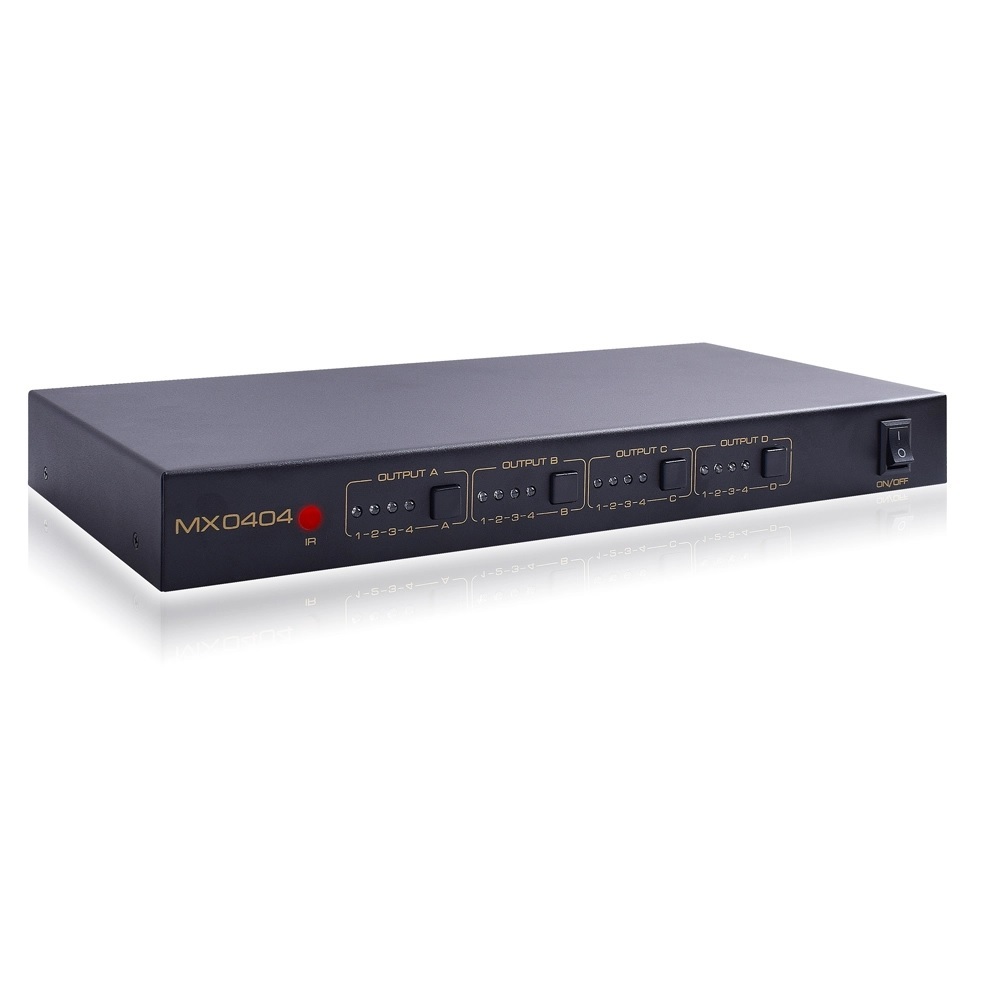

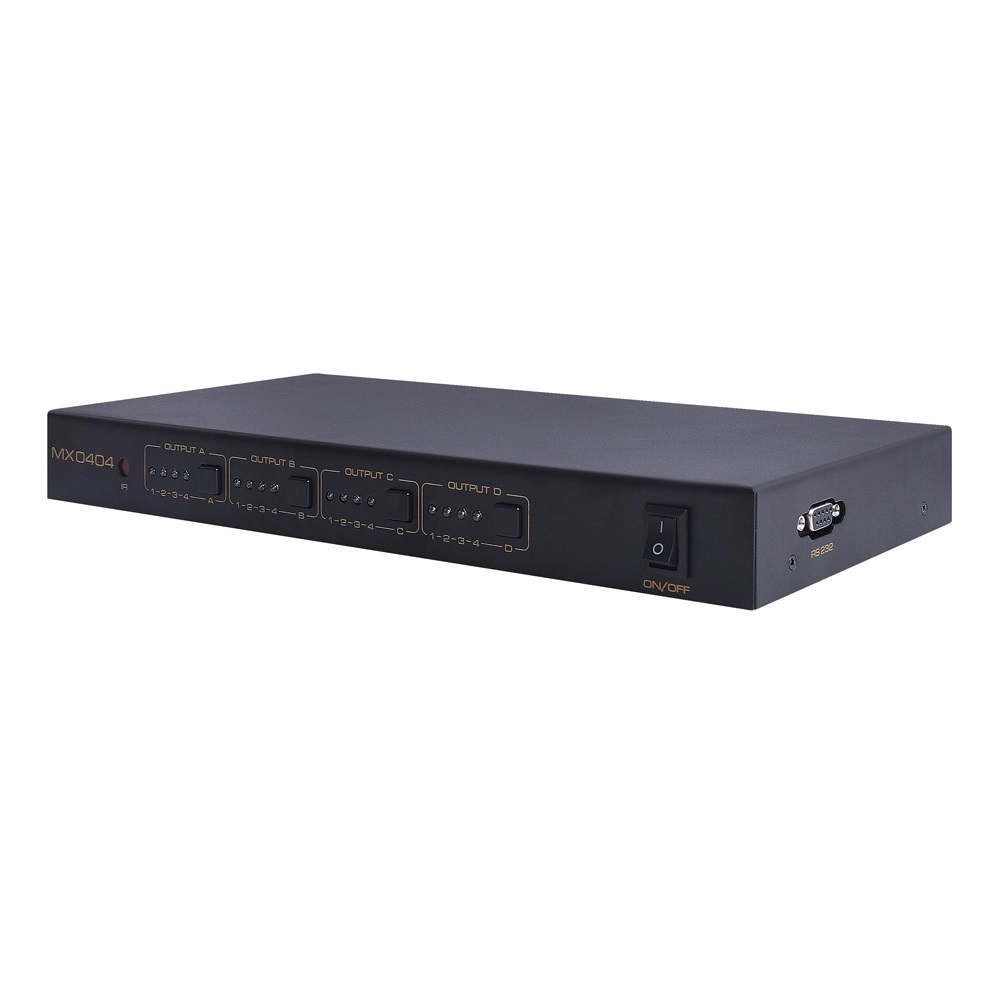

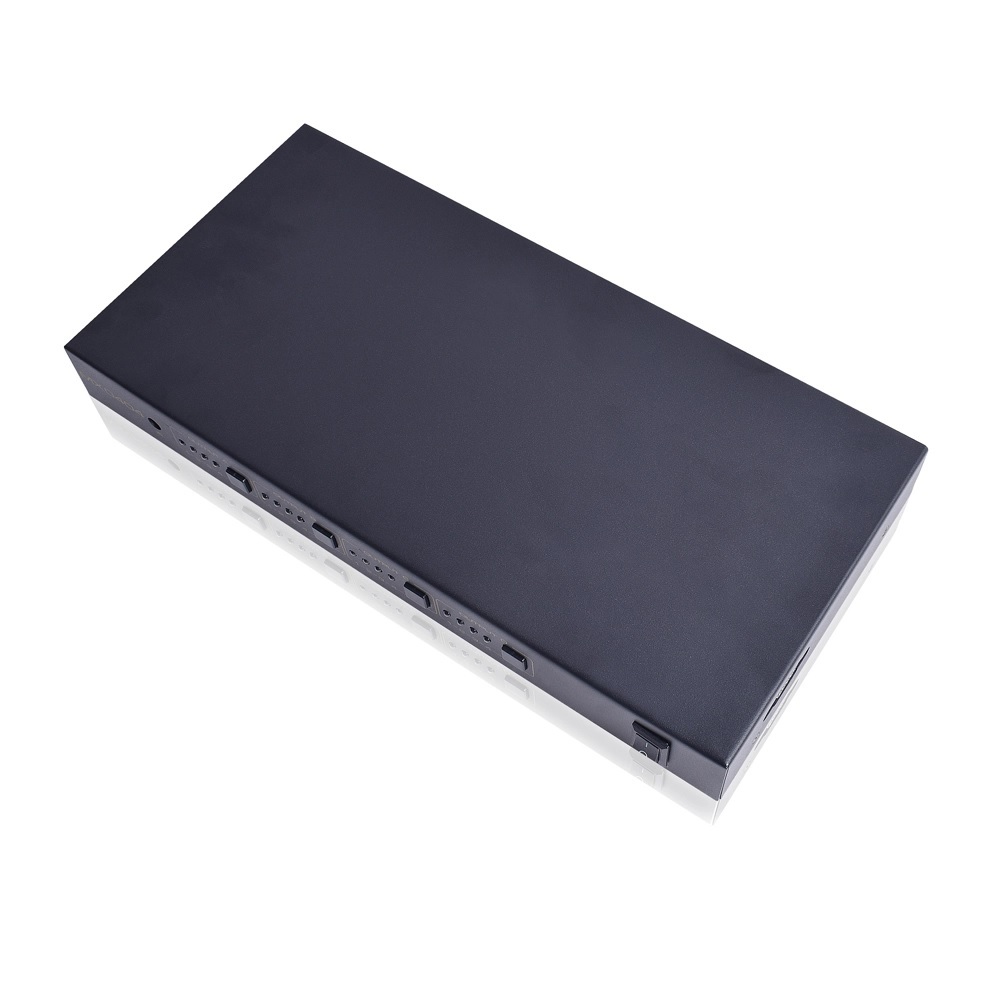

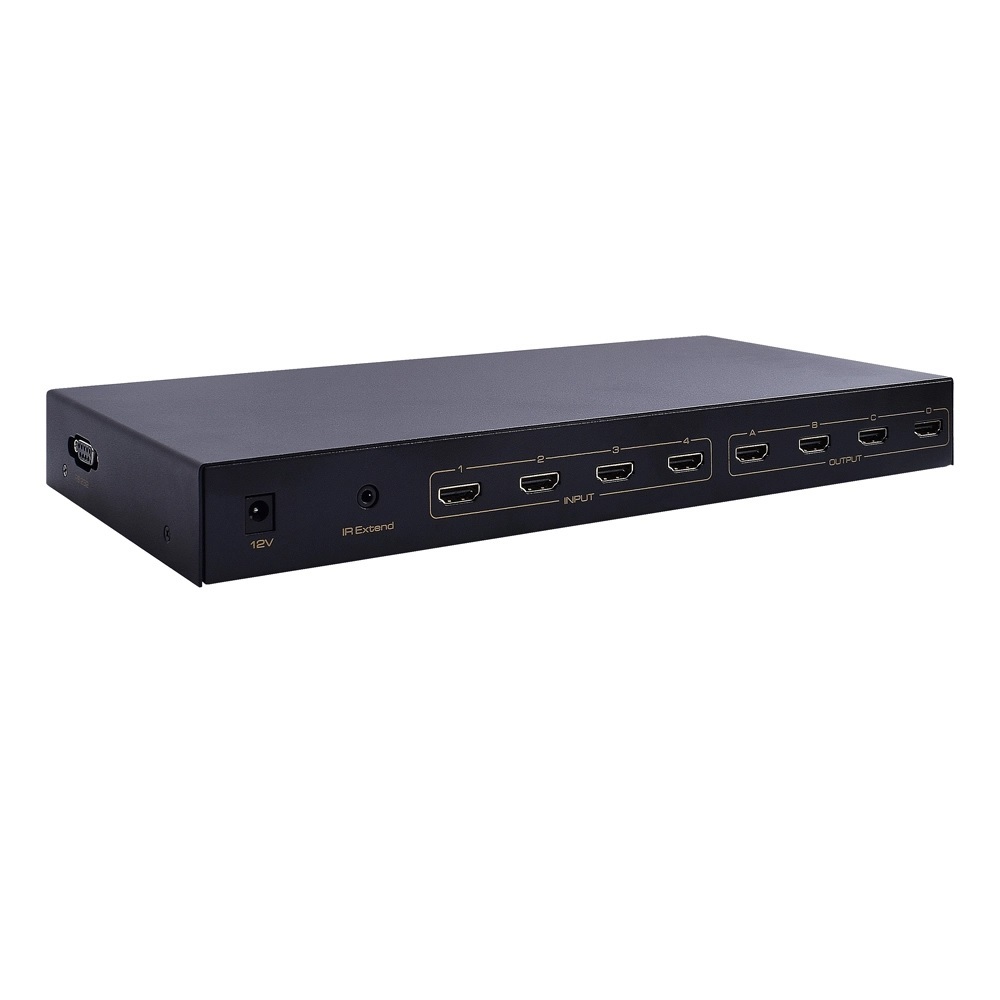

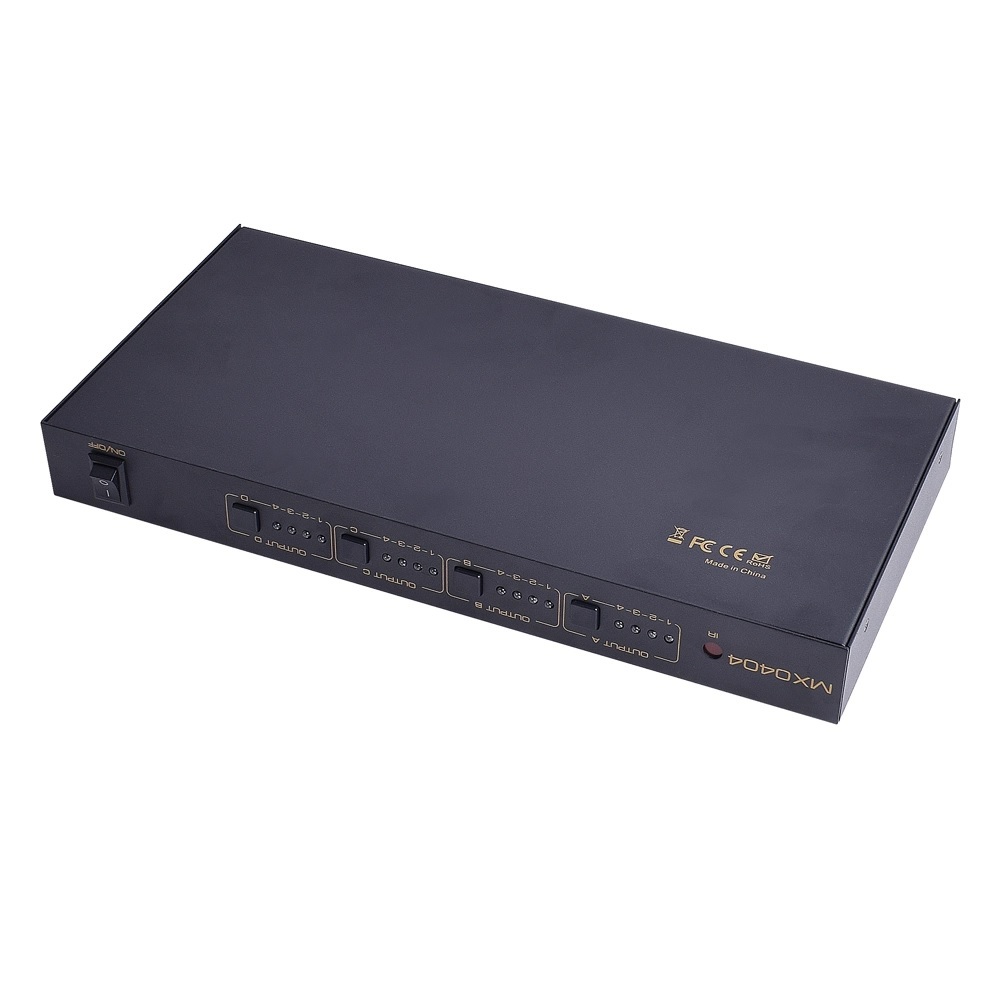

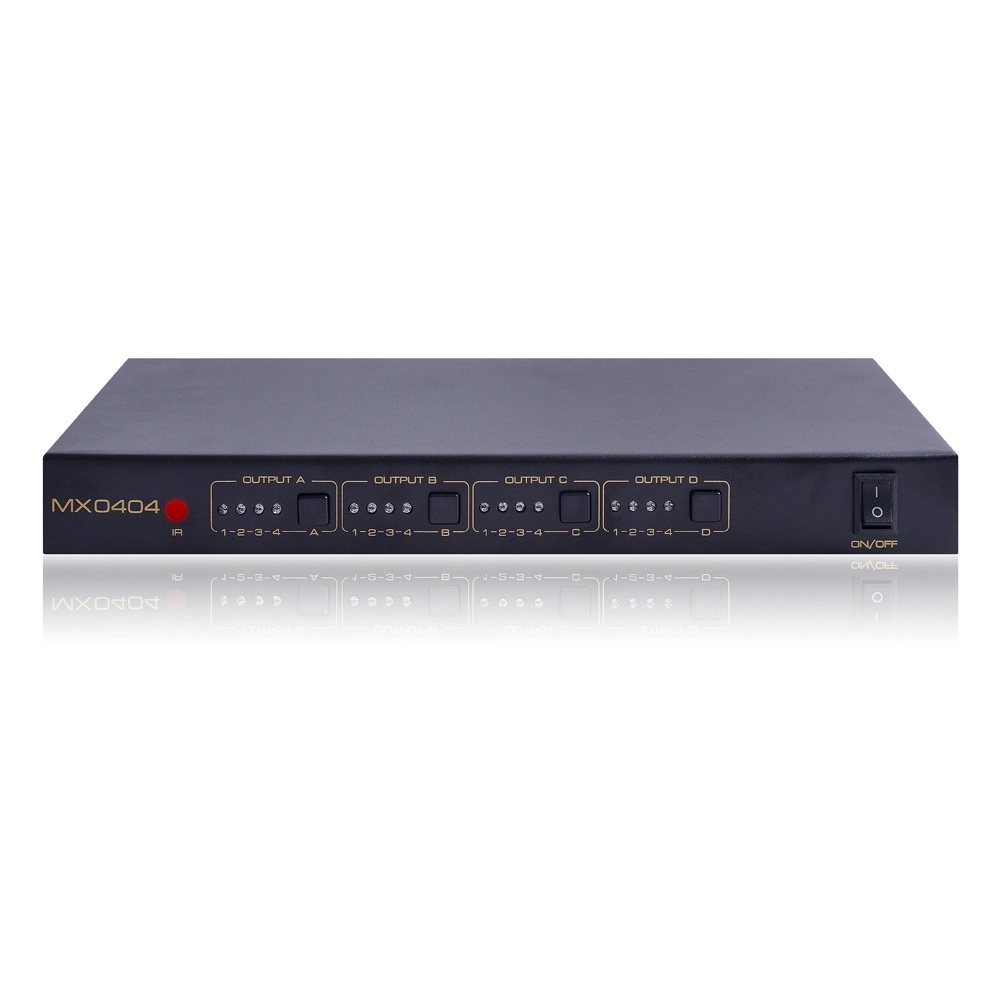

4 x 4 HDMI AV Matrix Switcher Splitter

Allows switching of 4 inputs to 4 display simultaneously

A high-performance HDMI Matrix Switcher and Splitter with four HDMI inputs & four outputs. It allows any HDMI input/source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be displayed to any of the four LCD/TV simultaneously. It supports 4K×2K, 3D, Deep Colour and 3Gbps bandwidth.

Features:

• Four Input HD Source signals switch and distribute to four HD Displays

• Support 30/36 Bit Deep Color

• Support Blue-Ray DVD 24/50/60fs / HD-DVD / xvYCC

• Support Audio Format:DTS-HD / Dolby-trueHD / LPCM7.1 / DTS/Dolby-AC3 /DSD

• Support Signal Retiming

• HDMI 1.3 Version

• HDMI Input Cable length can be up to 10m and HDMI Output Cable length up to 10 when transmitting 1080P signal by using standard AWG24 HDMI Cable;

• HDMI Input Cable length can be up to 5m and HDMI Output Cable  length up to 5m when transmit the 4Kx2Knal by using standard AWG24 HDMI Cable;

Contents:

• 1. Main Unit

  2. Power Adaptor

  3. Remote

  4. User Manual

  5. CD （RS232 Control Software）

  6. IR Extender Cable

  7. RS232 Serial Port Cable

Specifications:

HDMI Input/Output Resolution : 24/50/60fs @ 3D/1080p / 1080i / 720p / 576p / 576i / 480p / 480i

Deep Color : 24bit/deep color 30bit,36bit

HDMI Audio Format : DTS-HD / Dolby-trueHD / LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Max bandwidth : 225MHz

HDMI Max baud rate : 6.75Gbps

Input/Output TMDS signal : 0.5~1.5Volts p-p（TTL）

Input/Output DDC signal : 5Volts p-p (TTL)

HDMI Input cable distance : ≤10m AWG26 HDMI standard cable

Output cable distance : ≤15m AWG26 HDMI standard cable

Max working current : 2A

Power adapter format : 5V/3A

Operating Temperature range : (-15 to +55℃)

Operating Humidity range : 5 to 90%RH (No Condensation)

Product size (L x W x H) : 308X151X36 (mm)

Weight : 1216g
