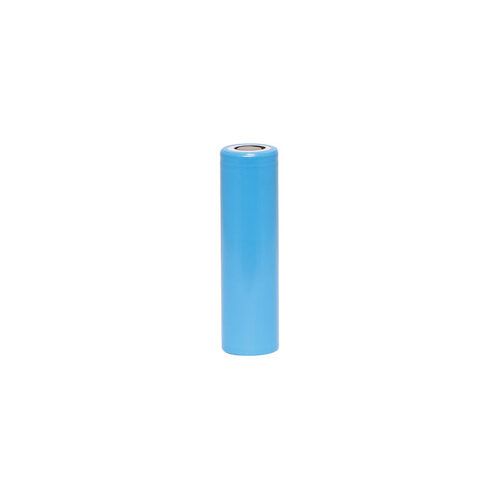

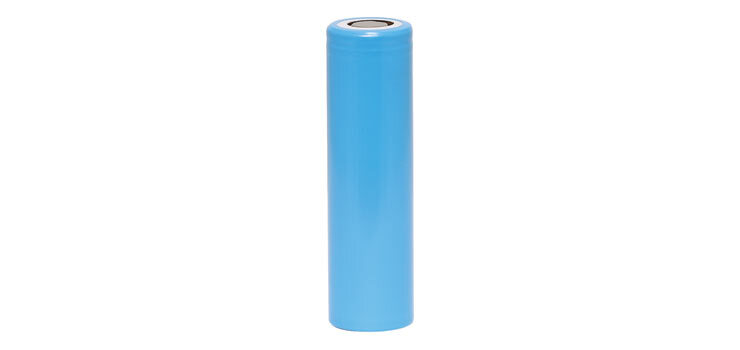

18650 2000mAh High Output Li-Ion Rechargeable Battery

Safe and Reliable Rechargeable Battery Solution

These high performance 18650 lithium ion 3.7V batteries offer high performance and long life from a compact package. They are 18.6mm in diameter and 65mm long. They offer a higher maximum current output than the standard 18650 batteries. Lithium-ion rechargeables offer excellent properties for use in consumer devices, including excellent energy density and low maintenance. Lithium-ion do not suffer from memory effect and possess no regular cycling that batteries often require to extend their service life.

Common applications for 18650 cells include:
Laptop computers
LED flash lights
Electric vehicles
Power tools
Converting AA or AAA powered products over to higher performance (providing voltage matches).

Note: These are an unprotected cell and should only be used in situations where a charging circuit is controlling the discharge and recharge of the cell. Incorrect usage of lithium cells can cause fire and advice should be sought before utilising them in any circuit for your project.

Specifications

• Nominal Capacity: 2000mAh (0.2C, 2.5V discharge)
• Minimum Capacity: 2550mAh (10A, 2.5V discharge)
• Charging Voltage: 4.2 ±0.05 V
• Nominal Voltage: 3.6V
• Charging Method: CC-CV (constant voltage with limited current)
• Charging Current: Standard charge: 2000mA, Rapid charge : 2000mA
• Charging Time: Standard charge: 150min, Rapid charge: 80min
• Max. Charge Current: 2600mA (ambient temperature 25°C)
• Max. Discharge Current: 30A (ambient temperature 25°C)
• Discharge Cut-off Voltage: 2.5V
• Cell Weight: 48.0g max
• Cell Dimension: Height: 65.00, Diameter: 18.43
• Operating Temperature: Charge: 0 to 45°C, Discharge: -20 to 80°C
• Storage Temperature 1 year: -30~25°C, 3 months: 30~45°C, 1 month: -30~60°C

  *Specifications are subject to change without notice.

• Note: This 18650 battery has a FLAT Positive terminal
•
