WS2812B 5050 Addressable RGB LED Strip Light - 1.3m

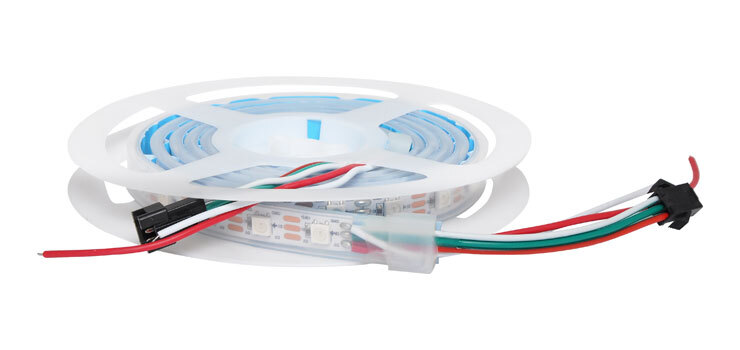

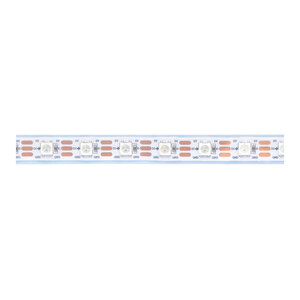

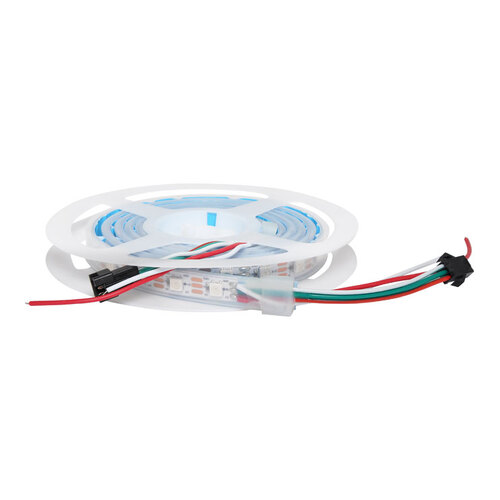

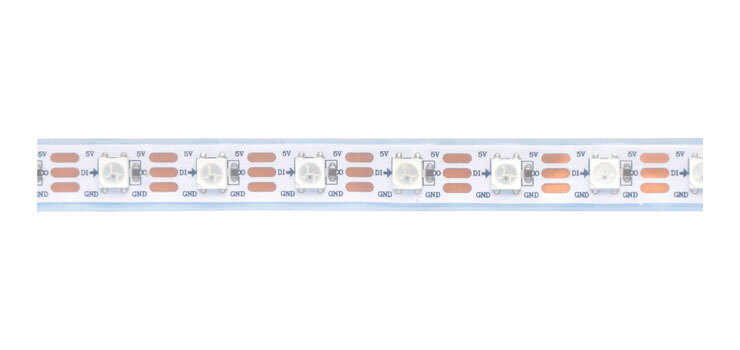

1.3m WS2812B 5050 RGB LED Strip Light

SKU: OP1770


$29.95
RRP $59.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $28.45 ea
Buy 11 to 20: Pay $25.61 ea
Buy 21 to 100: Pay $23.04 ea




Calculate Shipping

WS2812B 5050 Addressable RGB LED Strip Light - 1.3m

1.3m WS2812B 5050 RGB LED Strip Light

This decorative WS2812B RGB LED strip features on-board chips to control the colour of each individual LED using open source platforms such as Arduino and Raspberry Pi. This allows for it to be controlled individually, which makes it ideal for programming and producing dynamic and creative effects. 60 LEDs per metre. 5V DC input. Weatherproof rated at IP67 for indoor or outdoor use.

Power Supply Requirements
LED strips can require quite powerful power supplies. This strip lighting utilises RGB LEDs which can have varying current requirements depending on the brightness and colour the LED is displaying. Whilst the specification listed is an absolute maximum, we recommend 6 to 8A power supply for a full 5m reel.

Sold per 1.3m roll.


Features

  • IP67 rated for indoor or outdoor use.
  • WS2812B on board controller chip
  • Controllable with Arduino or Raspberry Pi
  • 60 LEDs per metre
  • Ideal for creative lighting effects, Christmas lighting etc.
  • 10mm profile width, works with aluminium profiles

Specifications

  • Chip: WS2812B
  • Voltage: DC 5V
  • Typical Current Draw: 1.6-2.2A per metre (will vary with brightness/color).
  • IC Type: Internal sealing type
  • Maximum working current: 0.06A per LED
  • LED Chip: SMD5050 RGB
  • Width:10mm
  • Package: 1.3m/Roll
  • Connector: 3pin connector
  • LED Quantity: 60 LEDs/M

    *Specifications are subject to change without notice.

12 Month Warranty

SKU OP1770
Barcode # 9321758235720
Shipping Weight 0.1000kg
Shipping Width 0.600m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.007500000m3
Unit Of Measure ea
