Wireless Bluetooth 4.0 Module for Arduino Projects

Expand your Arduino projects to have Bluetooth function

SKU: TA0338


$14.95
RRP $29.95
Pre-order expected dispatch date 25 October 2019 (subject to change)

Buy In Bulk & Save!
Buy 4 to 10: Pay $15.62 ea
Buy 11 to 20: Pay $14.84 ea
Buy 21 to 100: Pay $14.10 ea




Calculate Shipping

  • Wireless Bluetooth Module for Arduino Projects

  • Expand your Arduino projects to have Bluetooth function

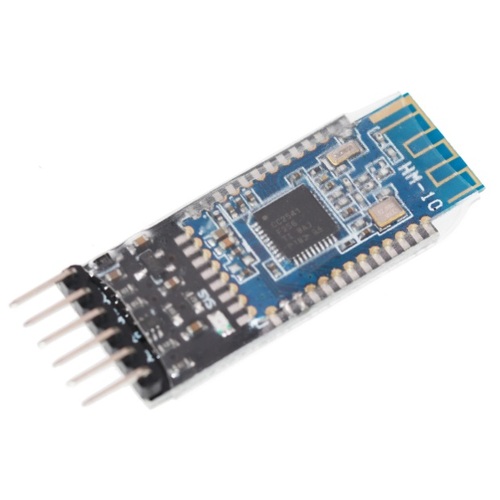

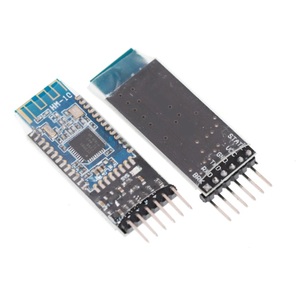

  • This HM10 CC2541 board is a serial Bluetooth 4.0 master/slave module. It can use AT commands to set baud rate, pairing password & module name. It’s capable of connecting to computers, other Bluetooth modules, mobile phones etc.

    The module is based on the Texas Instruments CC2541 Bluetooth Low Energy (BLE) System on Chip (SoC). It’s perfect for adding Bluetooth 4.0 connectivity to your next DIY project.

Click HERE to download library files

  1. Connect 3.3V of Arduino to the VCC of HM-10
  2. Connect GND of Arduino to the GND of HM-10
  3. Connect D8 of Arduino to RX of HM-10
  4. Connect D7 of Arduino to TX of HM-10
  5. Connect D2 of Arduino to the long leg of LED along with a 220 ohm resistor
  6. Connect the short leg of LED with the GND of Arduino

Code to connect to the BLE module



app.connect = function()

{

evothings.arduinoble.close();

evothings.arduinoble.connect(

'BT05', // Name of the module.

function(device)

{

app.device = device;

app.showMessage('Connected! Touch buttons to turn LED on/off.');

},

function(errorCode)

{

app.showMessage('Connect error: ' + errorCode + '.');

});

};

3 Month Warranty

SKU TA0338
Barcode # 9351634010783
Brand iDuino
Shipping Weight 0.0300kg
Shipping Width 0.140m
Shipping Height 0.020m
Shipping Length 0.090m
Shipping Cubic 0.000252000m3
Unit Of Measure ea

Wireless Bluetooth 4.0 Module for Arduino Projects

By: on 1 March 2019
Product fits in nicely with project. Arrived in good order, excellent delivery time.
