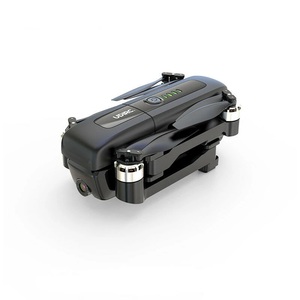

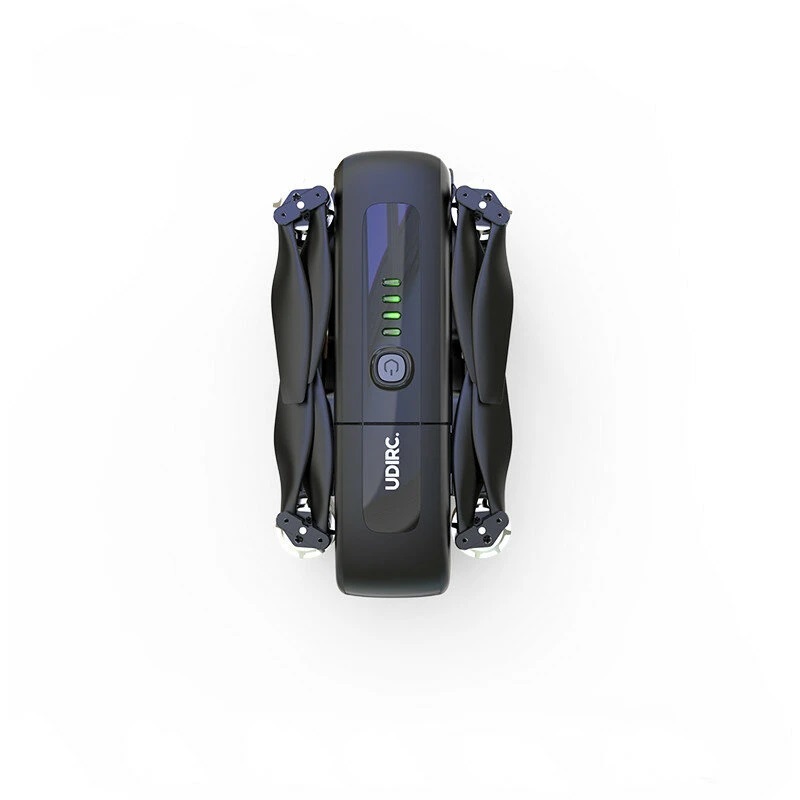

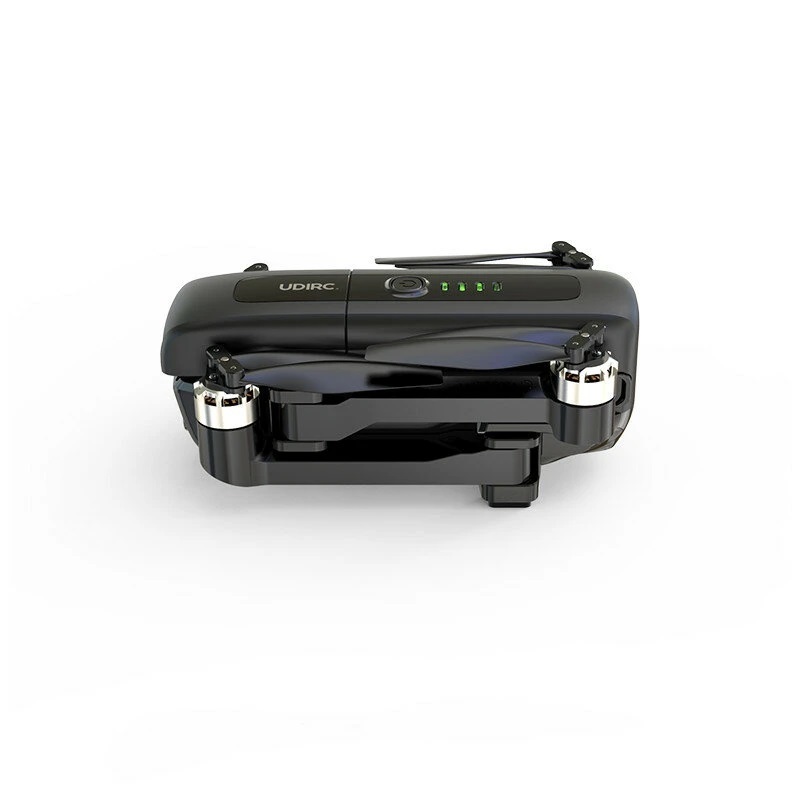

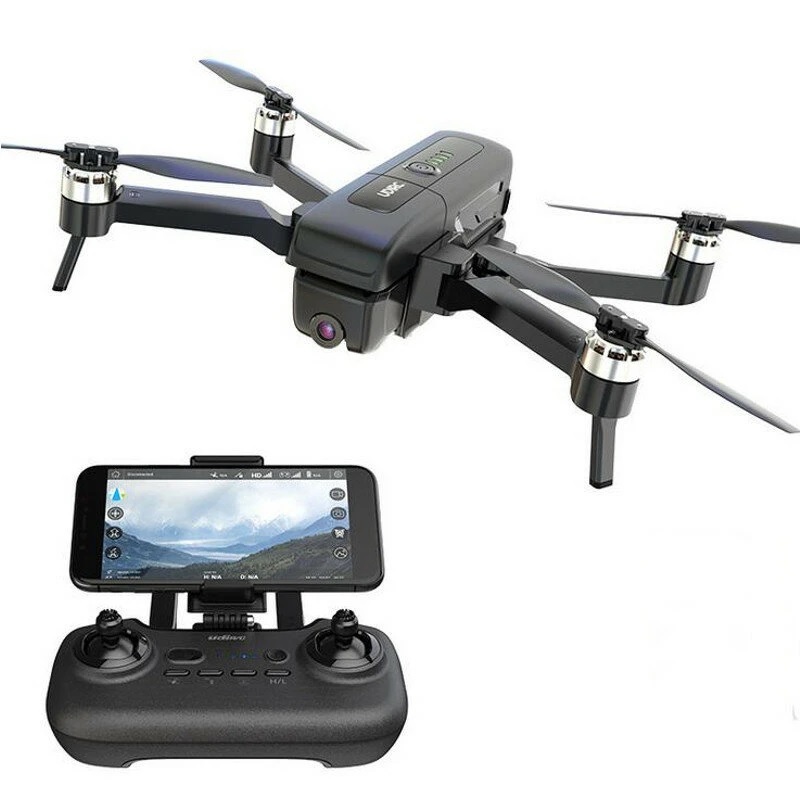

U38S Folding Brushless GPS Drone with 4K HD FPV Camera

Portable Mini Photography Drone

The UDI U38S is a mini folding camera drone equipped with a 4K full HD FPV Camera on a 2 axis gimbal for stable video recording. The camera is tilt adjustable from the remote making it a great for photography and videography drone. Integrates GPS functionality, optical flow positioning and altitude hold mode for stable drone positioning, return to home function and video flight modes.

The U38S Camera Drone is capable of transmitting video back to your smartphone via the APP up to 1km in distance. The modular high capaicty rechargeable battery pack is able to provide up to 25 mins flight time. Features follow me, orbit mode, waypoint flight modes. It integrates handy safety features such as Lose control and low battery retunr functions to ensure your drone is always safe.



Drone
Model: U38S
Weight (include battery and propeller)：530g
Size：Folded：173.5x93x70mm
Diagonal：297mm(Diagonal motor shaft spacing)
Propeller radius：79.5mm
Maximum ascent rate：1.7m/s
Maximum descent rate：1.7m/s
Maximum speed：About 24km/h
Flight altitude limit：250m
Maximum flight time：25 minutes(calm)
Maximum wind speed：level 3
Maximum tilt angle：35°
Operating Temperature Range：0°C – 40°C
GNSS：GPS / GLONASS
Operating frequency：2.4Ghz / 5G wifi

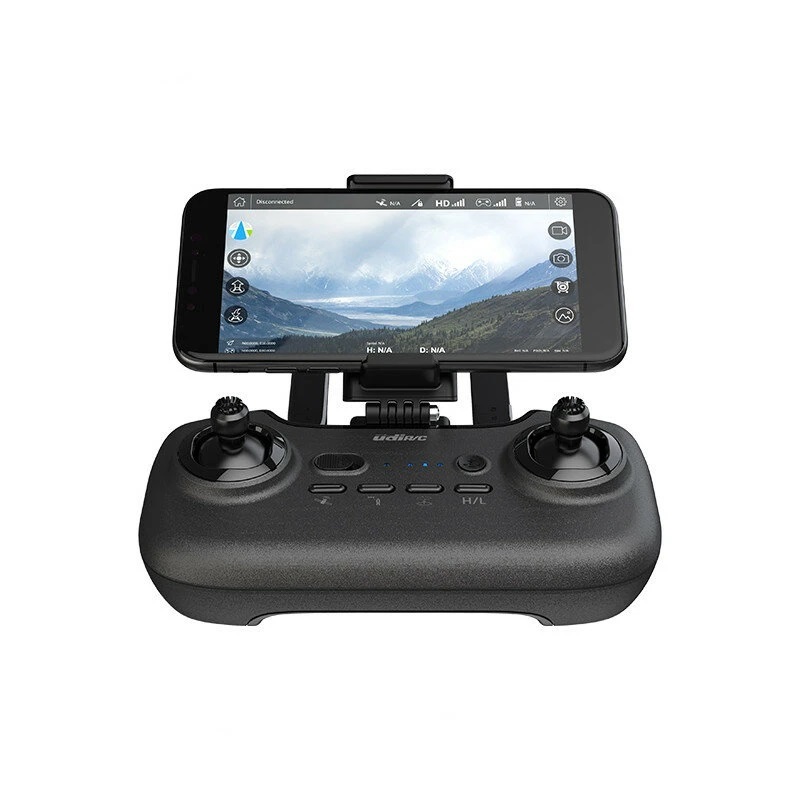

Remote Controller
Operation Frequency：2.4Ghz
Maximum transmission distance：1 km
Operating Temperature：0°C to 40°C

APP / Live View
App Name:UDIGPS
Image transmission system：5G wifi
Real time image transmission：720 P@20 fps
Operation System：This software is suitable for mobile phones in the IOS 9.0 or
later and Android 4.4 or later system,

Main feature
GPS Positioning, Optical Flow Positioning, Altitude Hold Mode, APP Control, Follow Me, Auto Return Home, Functional Waypoints, Surround Flight, Real-time FPV, One button take off/landing, Up, Down, Forward, Backward, Turn left/right, Fly left/right

Camera
Image resolution：2048x1152P
Static Photography Mode：Single shoot
Video Resolution：2048×1152 P
Image mode：RGB
Frame Rate：25
File System Support：FAT 32
Image format：JPEG
Video format：MP4, H.264
TF Card：Support Class 10 Micro TF card，Supreme support 64G. ≥10 level Micro TF Card.
Operation Temperature：0°C-40°C

Gimbal
Stable：Two axis（tilt）
Controllable range：Tilting：-90° to 0°

Flight Battery
Capacity: 2600 mAh
Voltage: 11.1 V
Battery Type: LiPo
Energy: 28.86 Wh
Net Weight: 220 g
Charging Temperature Range: 5° to 40°C

Charger
Input：5V ≥ 2A
