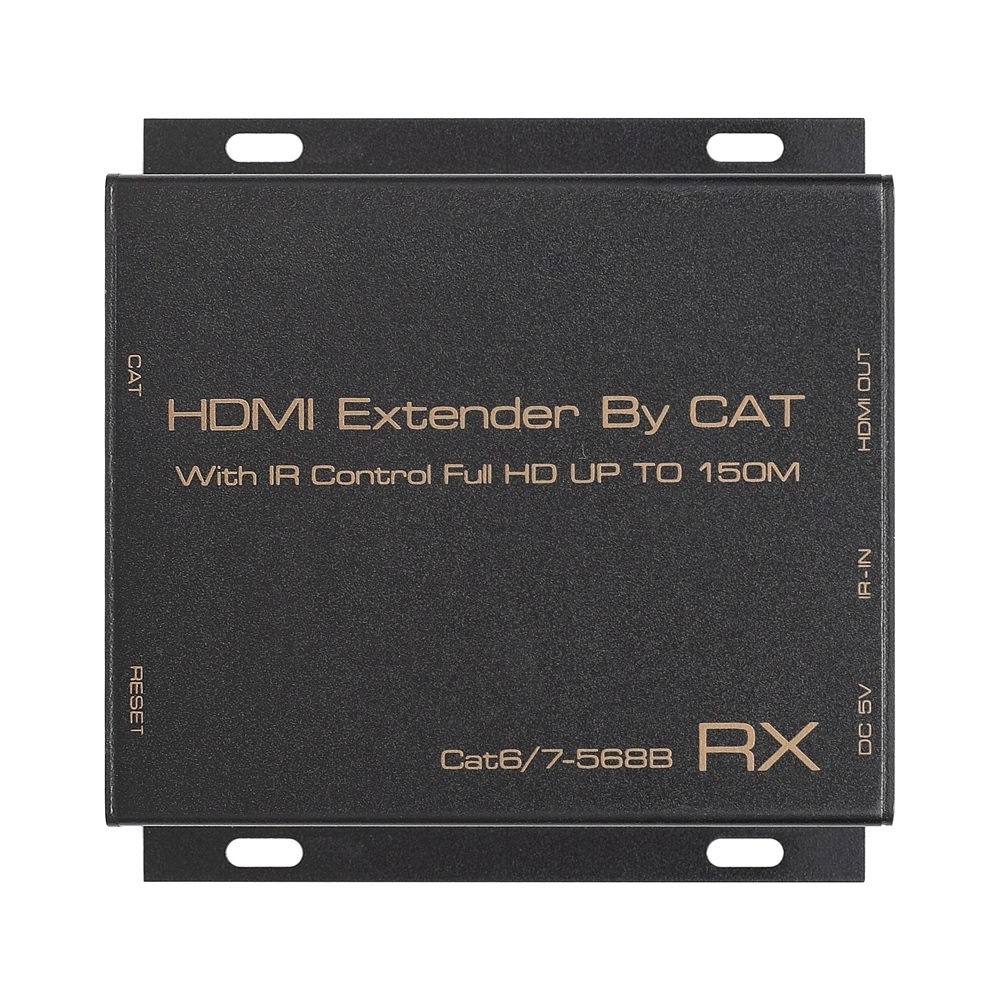

HDMI Over IP Extender Cat 5E/6 Receiver with Infra-red Repeater

HDMI Ethernet Receiver to suit AA6048

SKU: AA6049


$79.95
RRP $159.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $75.95 ea
Buy 11 to 20: Pay $72.15 ea
Buy 21 to 100: Pay $68.55 ea




Calculate Shipping

HDMI Extender Over Cat 5E/6 Receiver with Infra-red Repeater

HDMI Ethernet Receiver to suit AA6048

Additional HDMI Extender Receiver over Cat 5/6/7 for multi-display applications via an Ethernet Switch. Allows HDMI range extension over 150m.

Features:

  • Support video input : 24/50/60fs @ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
  • Signal transmission: use one cat6/7(recommend cat6) to connect the sender and receiver, and the Ethernet cable length up to 150m.
  • Support Point to Point, point to multi-point and cascade transmition.
  • Support Resolution up to 1080P/60HZ.
  • Support 24/30/36Bit
  • Support video output : 24/50/60fs @ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
  • Support IR extender, long distance control of the HD Source by using the IR received at the receiver.
  • Supports 802.3 IEEE Standard
  • CAT connections according to IEEE-568B
  • Supports longer distance through an Ethernet switcher.
  • LED indication
  • No loss of quality
  • Installs in minutes



Specifications:



Length of CAT-6 cable between Rx and TX - Up to 150 meters

HDMI Input - 24/50/60fs @ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i

Support audio format input - DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD

HDMI Output - 24/50/60fs @ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i

Max bandwidth - 225MHz

Max baud rate - 6.75Gbps

Input Video signal - 0.5~1.5Volts p-p

Output DDC signal - 5Volts p-p (TT1L)

Input HDMI cable distance - ≤10m AWG26 HDMI standard cable

Output HDMI cable distance - ≤15m AWG26 HDMI standard cable

Max working current - 600mA

Power adapter format - Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A(RX/TX)

Operating Temperature range - -10 to +55℃

Storage Temperature range - -20 to +60℃

Operating Humidity range - 10 to 90%RH (No Condensation)

Storage Humidity range - 5 to 95%RH (No Condensation)

Dimension (L x W x H) - 94X93.8X28 (mm)(RX/TX)

Weight - 150g(TX)

Weight - 152g(RX)

12 Month Warranty

SKU AA6049
Barcode # 9351634010295
Brand Playvision
Shipping Weight 0.3600kg
Shipping Width 0.200m
Shipping Height 0.010m
Shipping Length 0.250m
Shipping Cubic 0.000500000m3
Unit Of Measure ea
Assembled Length 0.250m
Assembled Height 0.010m
Assembled Width 0.200m
