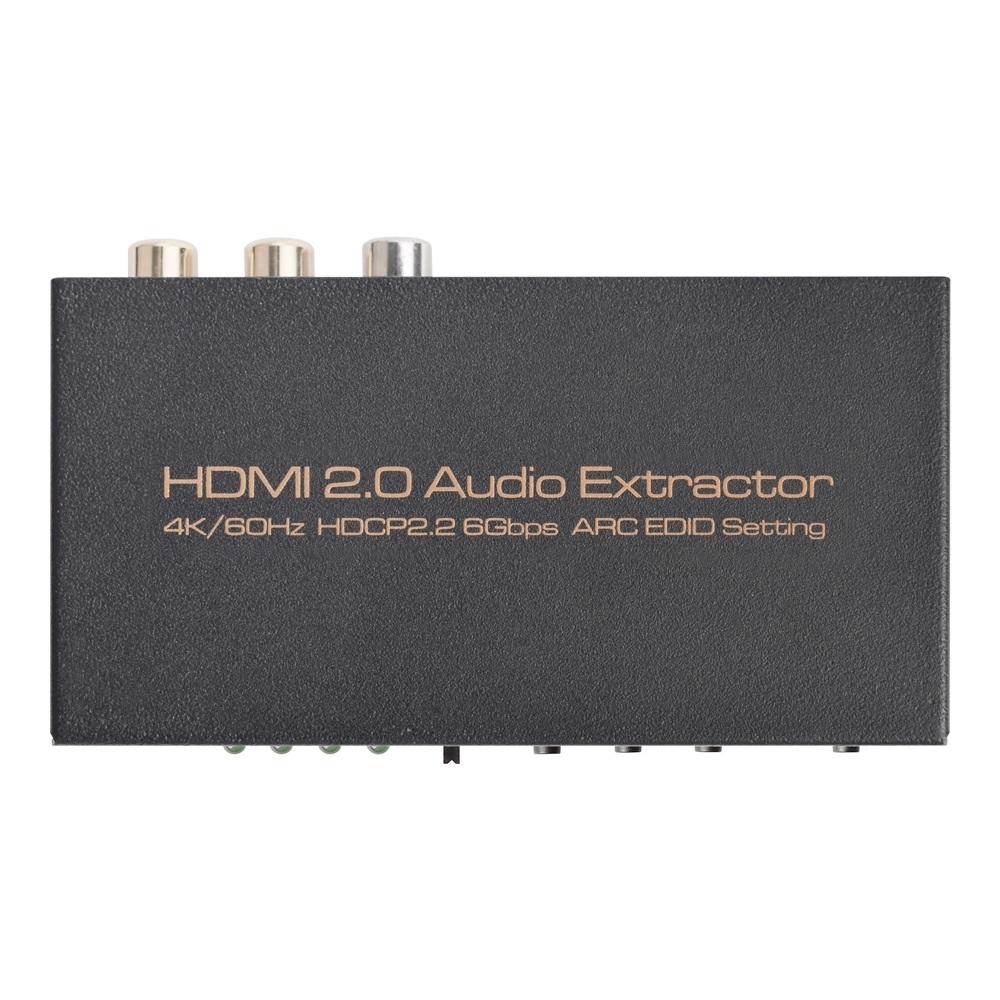

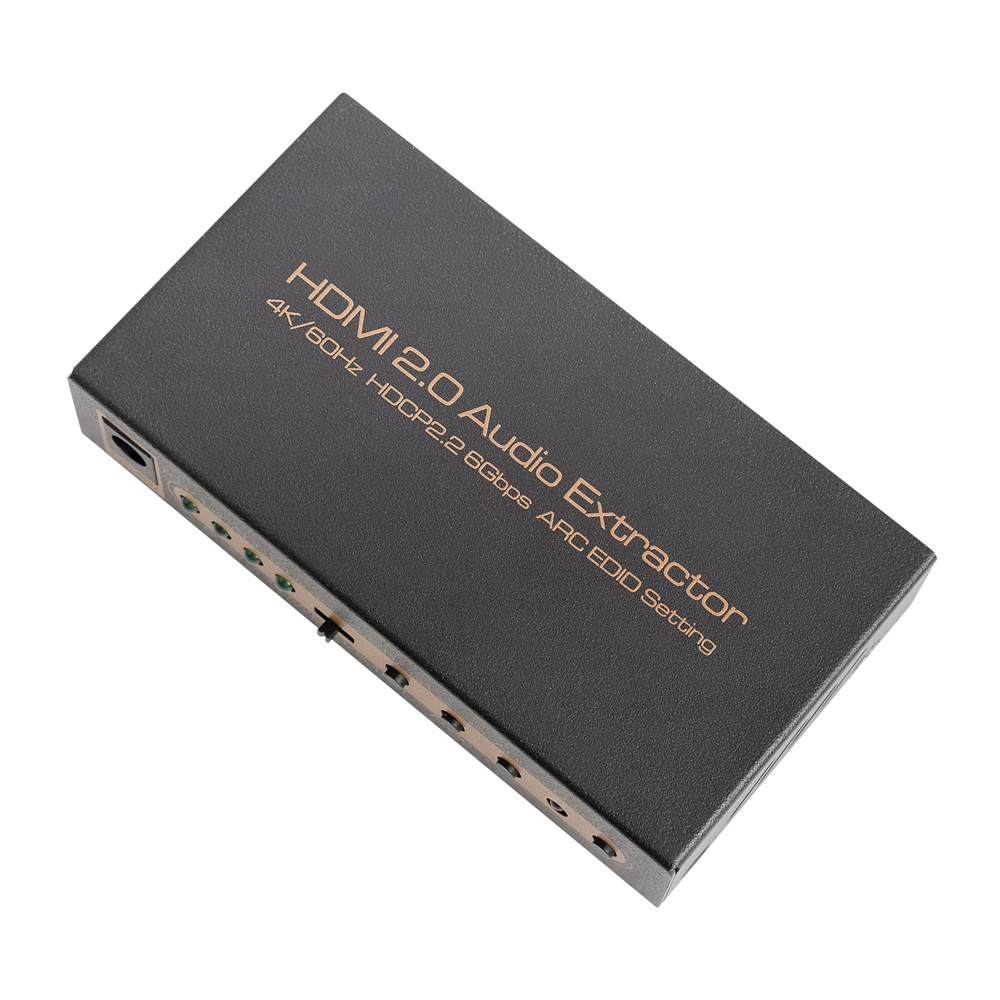

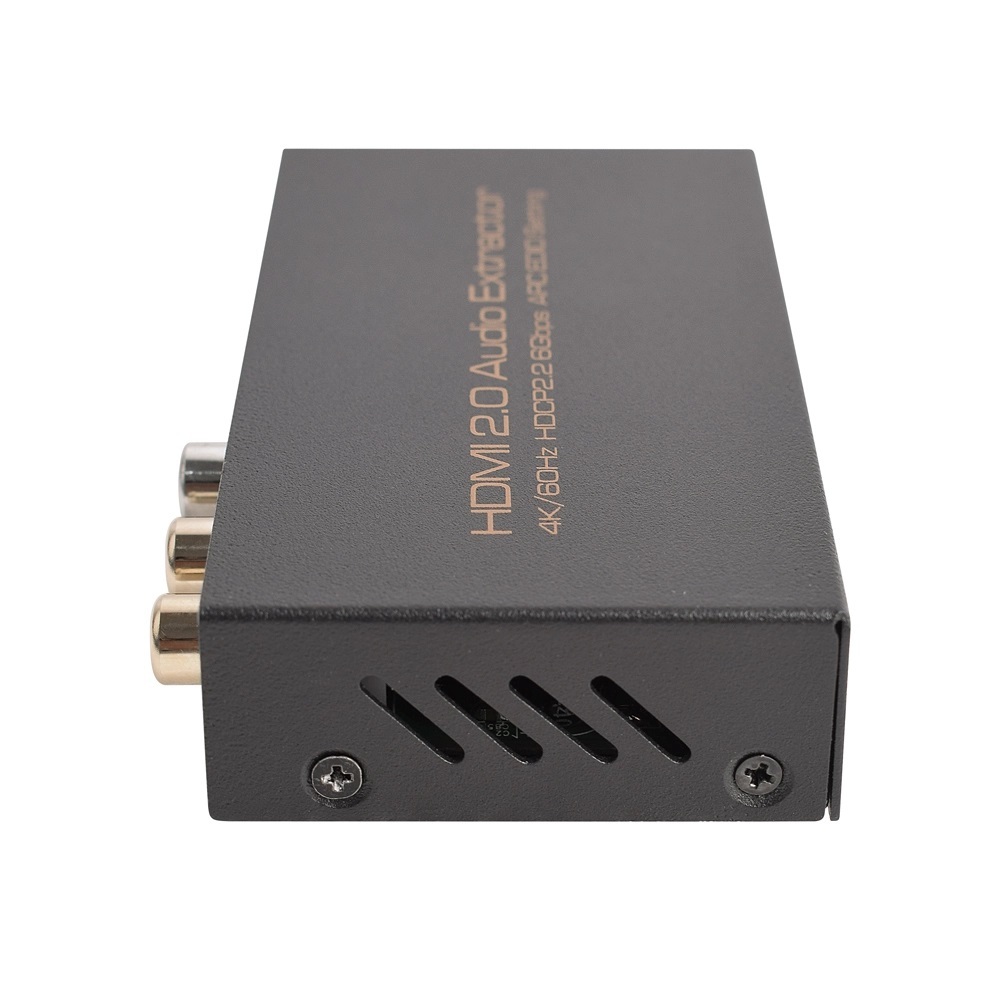

HDMI 2.0 Audio Splitter / Extractor with HDR and ARC

HDMI 2.0 Audio Splitter Extractor

SKU: AA6086

RRP $149.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $66.45 ea
Buy 11 to 20: Pay $63.12 ea
Buy 21 to 100: Pay $59.97 ea
Buy 101 to 499: Pay $53.97 ea
Buy 500 to 1,000: Pay $43.69 ea

Calculate Shipping

HDMI 2.0 Audio Splitter Extractor


Allows connection of your HDMI device to your Home Theatre

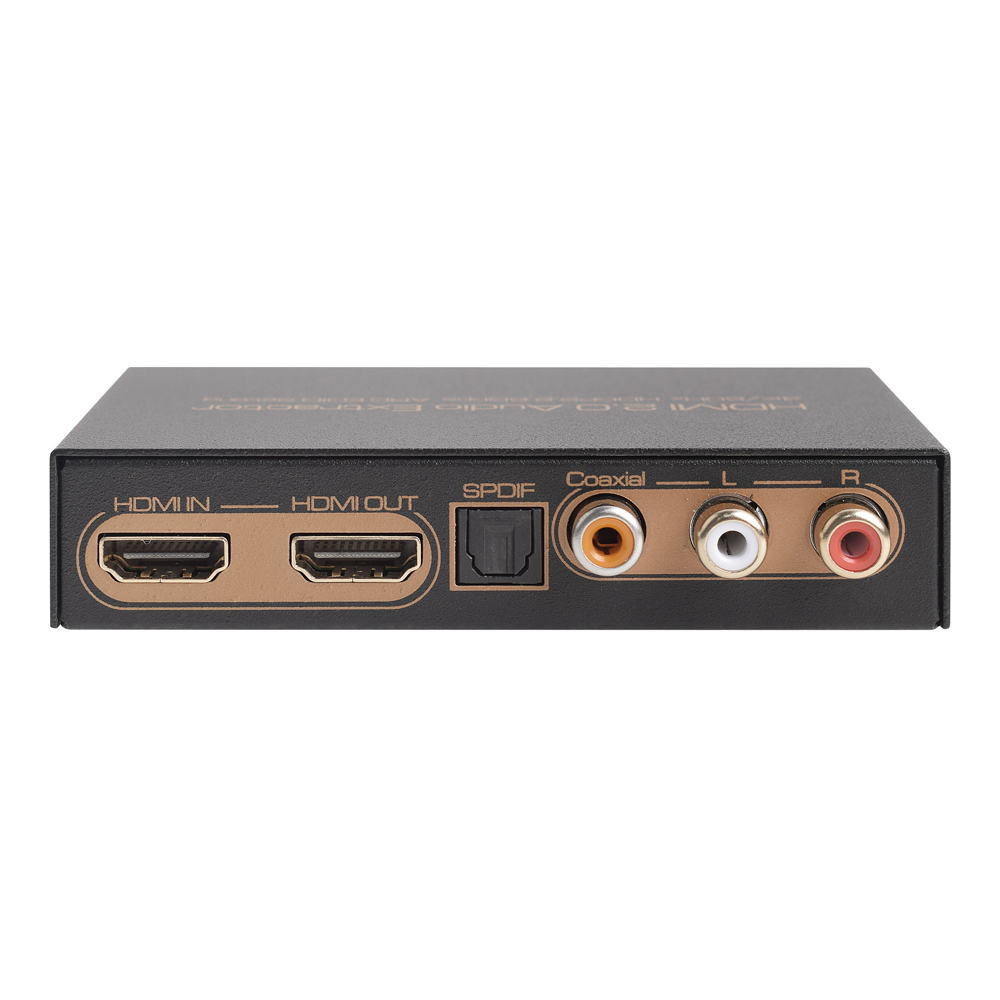

This HDMI 2.0 Audio Splitter/Extractor allows you to connect your HDMI Devices (PS4, XBOX, Set Top Box, Blu-ray) to older hi-fi receivers, amplifiers and even headphones with fibre optic/toslink and analogue RCA Audio inputs.

The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.



• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

• Video resolutions up to 4K2K @ 50/60Hz (YUV444)

• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio

• Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH

• Supports HDMI High Bit Rate(HBR) audio pass through

• Audio sample rates up to 192kHz

• 10bits HDR (High Dynamic Range) pass through

• Supports ARC



HDMI resolution : 4K @ 60Hz /4K @ 30Hz/ 1080P / 1080i / 720p / 576p / 576i / 480P / 480i

Support audio format : DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD

Max bandwidth : 600MHz

Max baud rate : 18Gbps

Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal : 5Volts p-p (TTL)

Input cable distance : ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable

Output cable distance : ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable

Max working current : 700mA

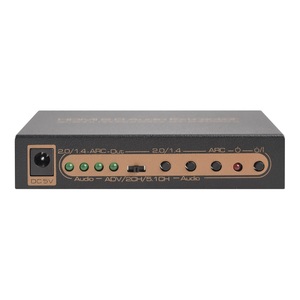

Power adapter : DC5V/2A

Operating Temperature range : -0 to +40℃

Storage Temperature range : -20 to +60℃

Operating Humidity range : 5 to 85%RH (No Condensation)

Storage Humidity range : 5 to 95%RH (No Condensation)

Dimension (L x W x H) : 105X56.8X22.5 (mm)

Weight : 160g


12 Month Warranty

SKU AA6086
Barcode # 9351634006045
Brand Aus Electronics Direct
Shipping Weight 0.4100kg
Shipping Width 0.130m
Shipping Height 0.060m
Shipping Length 0.170m
Shipping Cubic 0.001326000m3
Unit Of Measure ea

HDMI Splitter

By: on 12 April 2023
Wow, this device is exactly what I wanted. Just perfect in every way. My dealings with Aus Electronics Direct were also excellent. Thanks guys for a great product and great support

HDMI Audio splitter

By: on 19 November 2021
This device does what it says it’ll do, separates the audio from the HDMI line. It got me out of a world of hurt trying to connect a new sound bar to an old tv that had no suitable ‘audio out’ connections.

HDMI 2.0 Audio Splitter/Extractor with HDR and ARC

By: on 15 May 2019
Well constructed and works exactly as promised. Connected to my Foxtel IQ4 passing HDMI to TV and audio to stereo system. Highly recommended.


By: on 29 March 2019
There are plenty of these audio extractors available, but this one was the lowest cost I could find from a reputable supplier. And it works well. The instructions are a little difficult to understand, but I just set the audio switch to 2.1, and everything worked immediately. It hasn't blinked, and I've watched about 5 movies so far.

Will buy again

By: on 31 October 2018
Good value, works as expected
