HDMI 1080p to RF Coaxial Converter Modulator and Extender

Convert HDMI to RF via Coax up to 500m

SKU: AA6146


$299.00
RRP $699.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $284.05 ea
Buy 11 to 20: Pay $269.85 ea
Buy 21 to 100: Pay $256.35 ea




Calculate Shipping

HDMI 1080p to RF Coaxial Converter Modulator and Extender

Convert HDMI to RF via Coax up to 500m

This HDMI to RF Coaxial Modulator converts full 1080p High Definition signal from a HDMI cable to an RF via Coaxial cable. This modulator converter allows for you to take a HDMI source such as Bluray Player or Set Top Box and convert it to a high definition DVB-T Terrestrial signal over a coaxial antenna system or installation through a number of configurations; point to point, splitter mode and Matrix Mode.

A very cost effective way of distibuting digital HDMI Signal over an existing analogue antenna installation. Able to transmit up to 500m range without amplification, this modulator

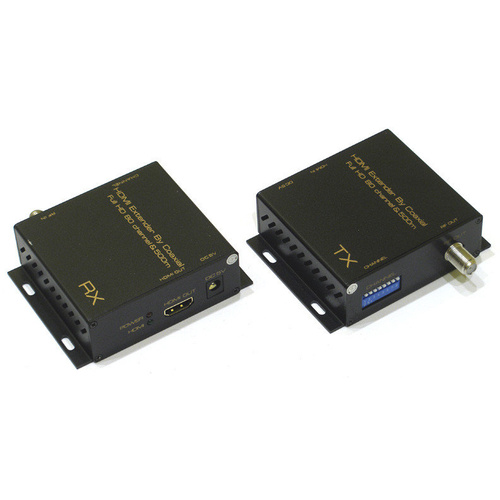

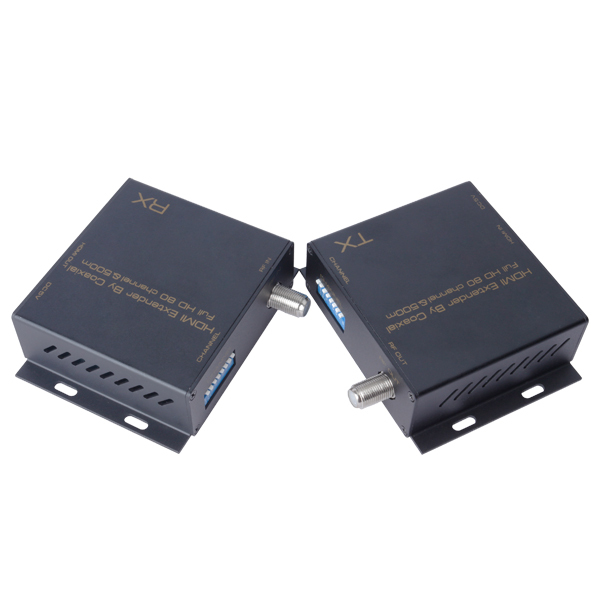

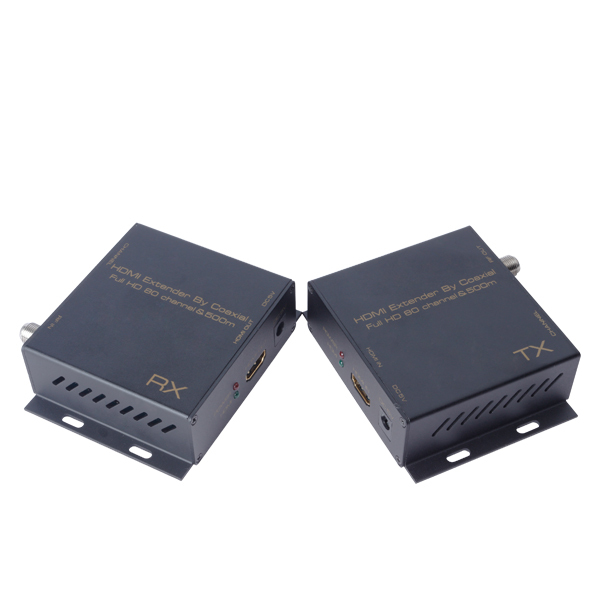

Point to Point mode - Use on one transmitter and receiver via a direct Coaxial cable connection.

Splitter Mode - Use of a Transmitter and multiple Receivers via Digital TV Mixers and Diplexers

Matrix Mode - Use of multiple Transmitters and Receivers via Digital TV Mixers and Diplexers

Additional receiver: AA6147


Specifications:
HDMI resolution : 24/50/60fs @ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i

HDMI Audio Format : LPCM

HDMI Max bandwidth : 225MHz

HDMI Max baud rate: 6.75Gbps

Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal : 5Volts p-p (TTL)

RF frequency range : 139~950 MHz

RF Channel B/W : 7/8 MHz

The number of Channel : 80

RF Output power : -6dBm

RF Connector type : F type/BNC

Coaxial cable Characteristic impedance : 75Ω

RF transmission distance : ≤500m SYV-75-5 coaxial standard cable

HDMI output cable distance : ≤15m AWG26 HDMI standard cable

TX Max working current : 650Ma

RX Max working current : 500mA

Power adapter : DC5V/2A

Operating Temperature range : -10 to +45℃

Storage Temperature range : -20 to +60℃

Operating Humidity range : 10 to 90%RH (No Condensation)

Storage Humidity range : 5 to 95%RH (No Condensation)

Case Dimension (L x W x H) : 94x74x28 (mm)

Weight : 240g

SKU AA6146
Barcode # 9351634013760
Brand Aus Electronics Direct
Shipping Weight 0.3800kg
Shipping Width 0.160m
Shipping Height 0.070m
Shipping Length 0.240m
Shipping Cubic 0.002688000m3
Unit Of Measure ea
