92mm 240V AC Maglev Bearing Cooling Fan

Cooling Fans and Accessories

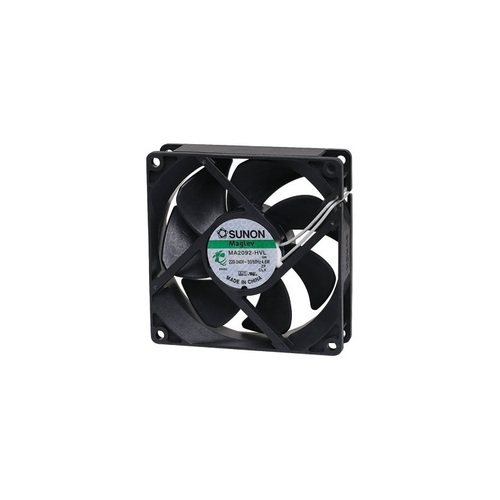

A 240V AC 92mm Sunon Maglev/Vapo Bearing Cooling Fan with thermoplastic frame

Designed for long-life and minimal noise operation.

Sunon® fans are manufactured to a very high standard and hold CSA and UL listings.



SPECIFICATIONS:

Mechanical Characteristics

• Motor Design: 2 phases, 4 poles brushless DC motor
• Motor Protection: Impedance protected
• Bearing System: Vapo bearing system
• Frame Material: Thermoplastic PBT of UL94V-0
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 119.7g
• Dimensions: 92 x 92 x 25mm

Electrical Characteristics

• Rated Voltage: 220-240V AC at 50/60Hz
• Rated Current: 225mA (230mA max)
• Input Power: 4.6W
• Operating Voltage Range: 150-250V AC
• Starting Voltage: 150V AC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 2900/3000 RPM ±20%
• Air Flow: 52/54 CFM
• Static Pressure: 0.12/0.14 Inch-H2O
• Noise Level: 31/32dB(A)
• Insulation Resistance: 10MΩ (min) at 500V DC
• Dielectric Strength: 1500V AC for one second
