9 + 9V 80VA Toroidal Transformer

Toroidal Transformers

SKU: PB2324


$44.95
RRP $89.95
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $42.70 ea
Buy 11 to 20: Pay $40.57 ea
Buy 21 to 99: Pay $38.54 ea




Calculate Shipping

9 + 9V 80VA Toroidal Transformer

Toroidal Transformers

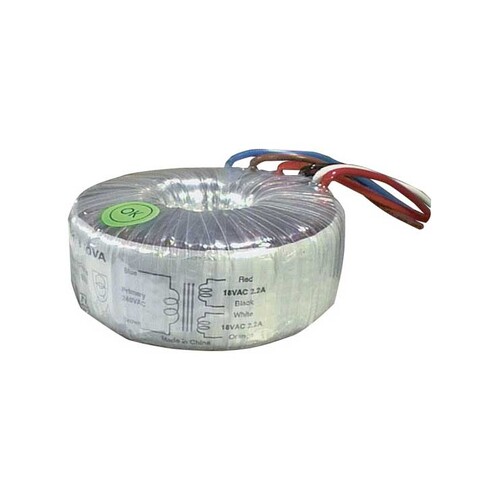

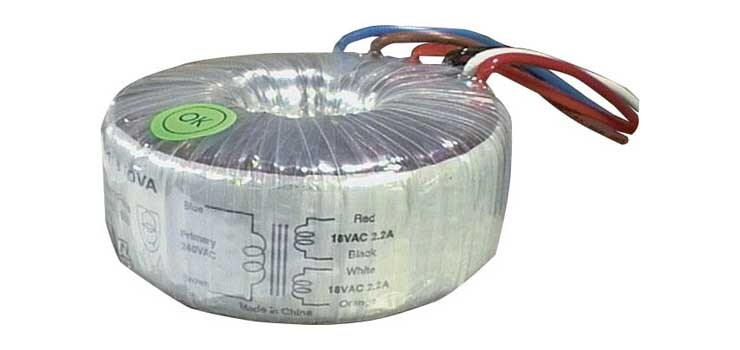

These 80VA transformers will fit inside our 1 Unit 19" rack cases
Certificate No.: CS 815/Q

Toroidal transformers are becoming increasingly popular due to their improved magnetic properties and also that they can be made to a lower profile than a standard solenoid core transformer, allowing for equipment of similar power to be of a lower profile such as rack mounted devices.
The advantage of the toroidal (donut) shape is that due to its symmetry the amount of magnetic flux that escapes outside the core (leakage flux) is minimised, therefore it radiates less electromagnetic interference (EMI) to nearby circuits or equipment. EMI is of increasing importance in modern low power, high frequency electronics.

Note: Must be used with a 1A external AC fuse.

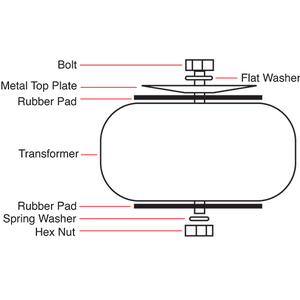

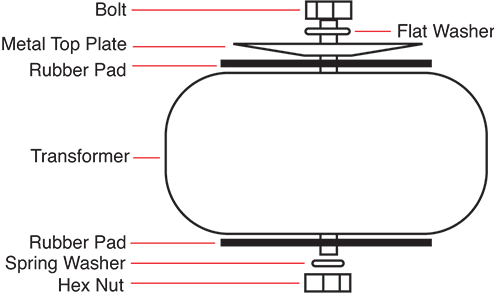

Included Mounting Hardware
1 x Mounting plate
1 x Gasket
1 x Mounting bolt
1 x Nut

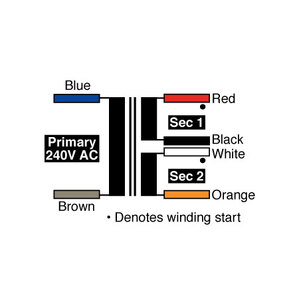

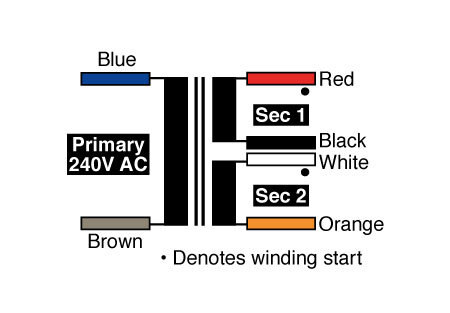

Notes on Wiring

Secondaries parallel
Current available where secondaries are connected in parallel.

Secondaries series
Current available where secondaries are connected in series.

FEATURES:

  • Each toroidal is supplied with 2 x rubber spacing washers, 1 x steel dished washer, 1 x mounting bolt, 1 x nut (except PCB mount versions).
  • Lower electrically induced noise demanded by compact equipment.
  • High efficiency enabling conservative rating whilst maintaining size advantages.
  • The toroidal transformer is accepted as the industry standard, replacing the laminated type as toroidal transformers offer advantages in size, weight, and lower radiated field.
  • Energy authority certified

SPECIFICATIONS:

  • Primary voltage: 240V AC
  • Secondary voltage: 9V (parallel), 18V (series)
  • Secondary current: 8.8A(parallel) 4.4A (series)
  • Regulation: Better than 10%
  • Maximum temperature rise: 75°C
  • Dielectric strength: 4000V for 1 Minute
  • Insulation class: Class B (130ºC)



SKU PB2324
Barcode # 9321758060940
Brand Power Iran
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.050m
Shipping Cubic 0.000150000m3
Unit Of Measure ea
