120mm 240V AC Ball Bearing Cooling Fan

Cooling Fans and Accessories

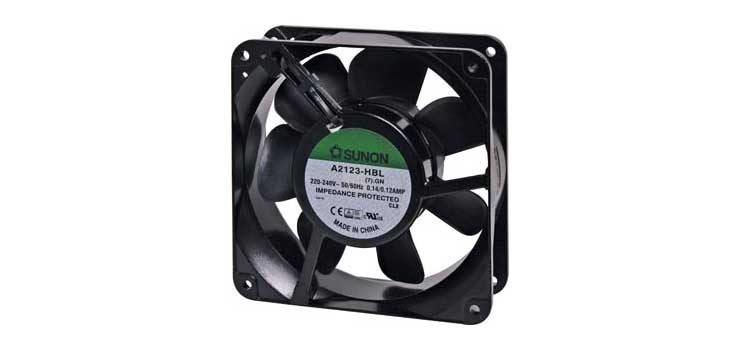

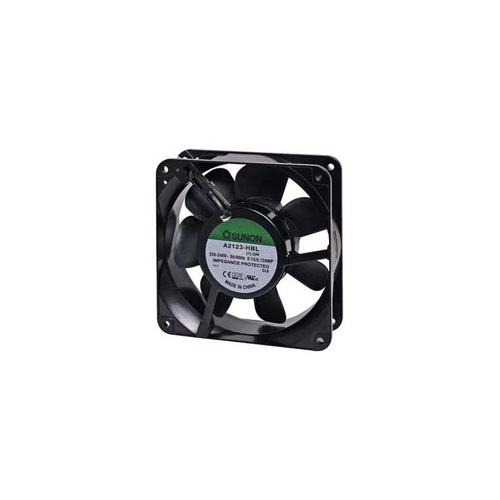

A 240V AC 120mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.

Designed for long-life and minimal noise operation.

Sunon® fans are manufactured to a very high standard and hold CSA and UL listings.



SPECIFICATIONS:

Mechanical Characteristics

• Motor Design: Shaded pole motor construction
• Motor Protection: Impedance protected
• Bearing System: Precision ball bearing system
• Frame Material: Die-cast aluminium
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 525g
• Dimensions: 120 x 120 x 38mm

Electrical Characteristics

• Rated Voltage: 220-240V AC at 50/60Hz
• Rated Current: 0.14/0.12A
• Rated Power: 24/22W
• Operating Voltage Range: 150-250V AC
• Starting Voltage: 150V AC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 2500/2750 RPM ±10%
• Air Flow: 112/124 CFM
• Static Pressure: 0.30/0.28 Inch-H2O
• Noise Level: 44/47dB(A)
