MP3 Audio Player and Recorder Module for Arduino Projects

Play and Record MP3 Audio Tracks on your Arduino project

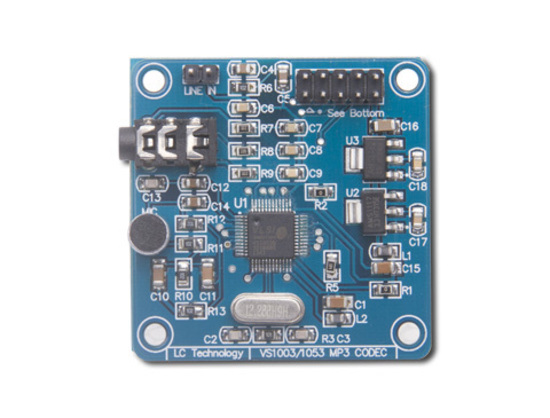

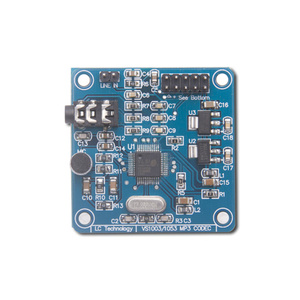

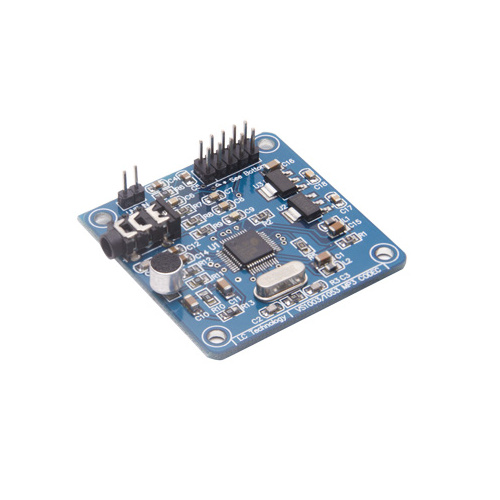

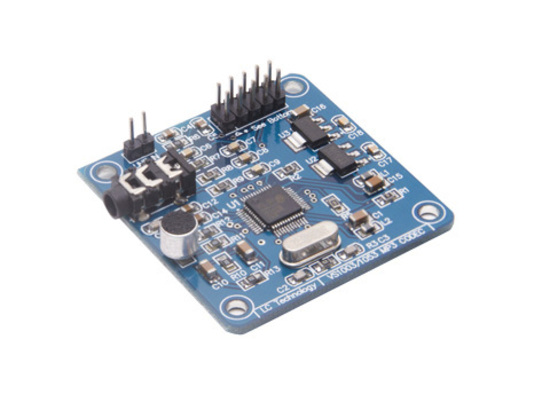

This MP3 module supports both playback and recording. An onboard microphone is used for audio in, and a 3.5mm jack provides the output for external amplified speaker connections. There is also a line-in header to use an external audio source instead of the microphone. Most projects using this device will require some form of mass-storage, such as an SD card.

•    Input power 5VDC
•    Supports MP3, MP3+V, WMA,WAV, MIDI, SP-MIDI
•    UART & SPI interface
•    Recording format IMA ADPCM
•    Dimensions: 44(L) x 44(W) x 10(H)mm

Specifications



MP3/WAV Recording/Playback Module

Supported Codecs

MP3, MP3+V, WMA, WAV, MIDI, SP-MIDI

Protocol

SPI

Operating Voltage

5VDC

Dimensions

44(L) x 44(W) x 10(H)



Pinout

Module

Duinotech

Function

SV

SV

SV Supply

GND

GND

Ground connection

MISO

D12

Master in Slave out

MOSI

D11

Master out Slave in

SCK

D13

Serial Clock

XRT

D8

Reset

DREQ

D7

Data Request

XCS

D9

Chip select

XDCS

D6

Data chip select
