60mm 12V DC Sleeve Bearing Cooling Fan

Cooling Fans and Accessories

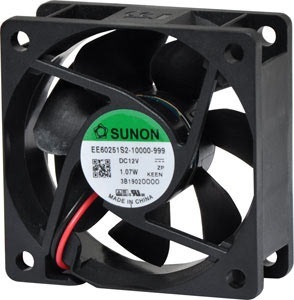

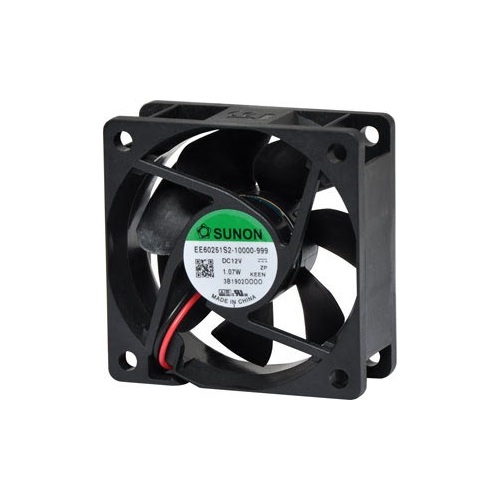

A 12V DC 60mm Sunon Sleeve Bearing Cooling Fan with thermoplastic frame.

Designed for long-life and minimal noise operation.

Sunon^® fans are manufactured to a very high standard and hold CSA and UL listings



SPECIFICATIONS:

Mechanical Characteristics

• Motor Design: 2 phases, 4 poles brushless DC motor
• Bearing System: Lubricated sleeve bearing system
• Frame Material: Thermoplastic PBT of UL94V-0
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 45g
• Dimensions: 60 x 60 x 25mm

Electrical Characteristics

• Rated Voltage: 12V DC
• Rated Current: 85mA (98mA max)
• Rated Power Consumption: 1.02W (1.18W max)
• Safety Power Consumption: 1.07W
• Operating Voltage Range: 4.5~13.8V DC
• Starting Voltage: 4.5V DC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 3800 RPM ±15% at rated voltage
• Air Flow: 19.3 CFM
• Static Pressure: 0.15 Inch-H2O
• Noise Level: 22.0dB(A)
• Insulation Class: UL Class A
• Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
• Dielectric Strength: 500V AC for once minute or 600V AC for 2 seconds between housing and lead wire (+)
• Life Expectancy: 35,000 hours at 40°C, 65% RH, 90% CL
