120mm 240V AC Sleeve Bearing Slimline Cooling Fan

Cooling Fans and Accessories

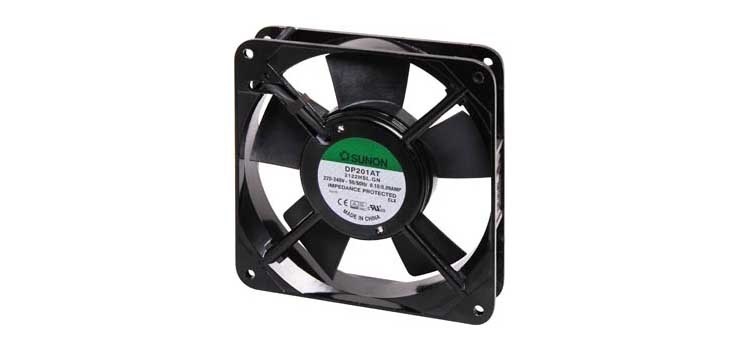

A 240V AC 120mm Sunon Sleeve Bearing Cooling Fan with diecast aluminium frame.

Designed for long-life and minimal noise operation.

Sunon® fans are manufactured to a very high standard and hold CSA and UL listings.



SPECIFICATIONS:

Mechanical Characteristics

• Motor Design: Shaded pole motor construction
• Motor Protection: Impedance Protection
• Bearing System: Lubricated sleeve bearing system
• Frame Material: Die-cast aluminium
• Blade Material: Thermoplastic PBT of UL 94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 295g
• Dimensions: 120 x 120 x 25mm

Electrical Characteristics

• Rated Voltage: 220-240V AC at 50/60Hz
• Rated Current: 0.09/0.08A
• Safety Current: 0.10/0.09A
• Rated Power: 18/16.5W
• Operating Voltage Range: 185-245V AC
• Starting Voltage: 185V AC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 2000/2300 RPM ±10%
• Air Flow: 64/78 CFM
• Static Pressure: 0.13/0.16 Inch-H2O
• Noise Level: 43/46dB(A)
• Insulation Resistance: 500MΩ (min) at 500V DC
• Dielectric Strength: 1500V AC for one second
