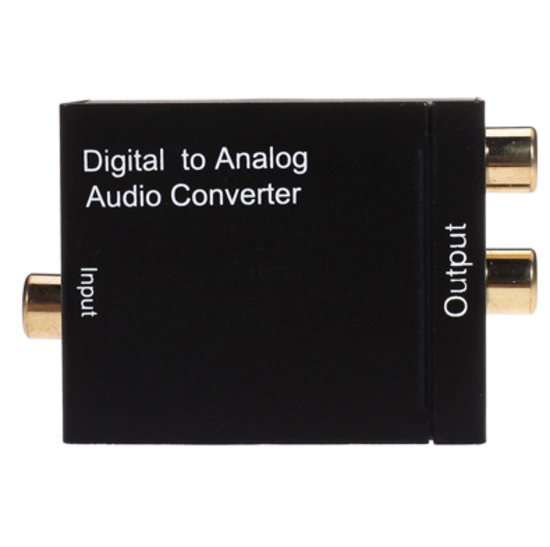

Digital to Analogue Audio Decoder Converter

Digital to Analogue Audio Converter

SKU: AA6004


$27.45
RRP $49.95
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $26.07 ea
Buy 11 to 20: Pay $24.77 ea
Buy 21 to 100: Pay $23.53 ea




Calculate Shipping

Digital to Analogue Audio Converter

Decodes Digital Audio and Converts to Analogue

This Digital to Analog Audio Decoder Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital SPDif Fibre Optic audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks. This Converter is small in size and quite easy to install.

Features:

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

  • Converts Coaxial or Toslink digital audio signals to analog L/R audio

  • Supports sampling rate at 32, 44.1, 48 and 96 KHz.

  • 24-bit S/PDIF incoming bit stream on left and right channels

  • Provides electromagnetic-noise-free transmission.

  • Easy to install and simple to operate.

Specification:

  • Signal Inputs/ Output

  • Input Audio: Coaxial or Toslink digital audio

  • Output Audio: L/R audio

Connector:

  • Input Audio Connector: Toslink、1XRCA(Coaxial)

  • Output Audio Connector: 2XRCA(R/L)

  • Sampling Rate: 32, 44.1, 48 and 96 KHz

Mechanical:

  • Size: (L-W-H) 51X41X26MM

  • Weight (Net): 78g

Warranty:

  • Limited Warranty: 1 Year Parts and Labor

Environmental:

  • Operating Temperature: 0 ℃ to +70℃

  • Operating Humidity: 10% to 85 % RH (no condensation)

  • Storage Temperature: -10℃ to +80℃

  • Storage Humidity: 5% to 90 % RH (no condensation)

Power Requirement:

  • External Power Supply: 5V DC@2A

  • Power Consumption: 0.5 watts (max)

Regulatory Approvals:

  • Converter Unit: RCM, FCC, CE, UL

  • Power Supply: SAA, UL, CE, FCC

Accessories Adapter:

  • AC Power Adapter: SAA Safety Approved

  • User Manual: English Version

User Manual (click below to download)

3 Month Warranty

SKU AA6004
Barcode # 9351634000166
Brand Playvision
Shipping Weight 0.2300kg
Shipping Width 0.110m
Shipping Height 0.080m
Shipping Length 0.140m
Shipping Cubic 0.001232000m3
Unit Of Measure ea
Assembled Length 0.100m
Assembled Height 0.010m
Assembled Width 0.120m
